点击放大查看

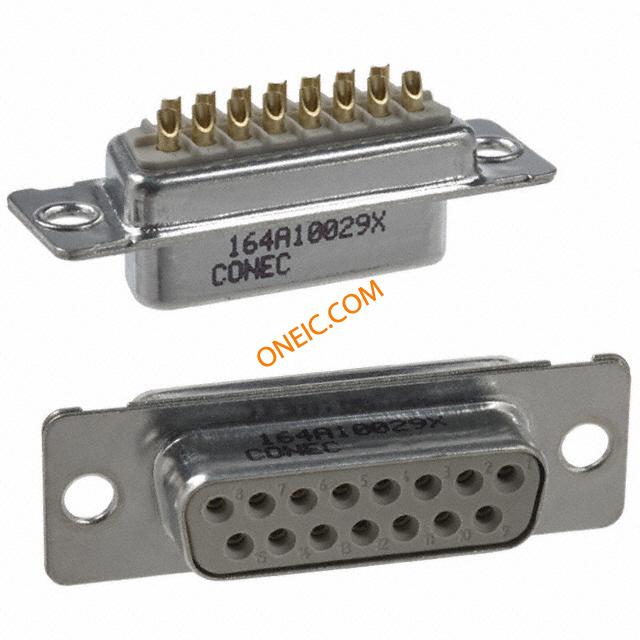

164A10029X
| Manufacturer | |
| Description | D-Sub Standard Connectors 15 POS SOLDER CUP AWG 20 FM THRUHOLE Conn D-Subminiature SKT 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port CONN DSUB 15POS RECEPT SOLDER |
| Category |
商业参数
| 其他名称 | 626-1032 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 125V | 最大额定电流 | 7.5A |
| 最小输入电压 | 125V | ||
机械参数
| 颜色 | Black | 深度 | 14.6 |
| 高度 | 12.93 | 包装方式 | Tray |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 39.52 |
| 端接样式 | Solder | 第一触头极性 | SKT |
| 触点数 | 15 | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 8µin (0.20µm) |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | Female |
| 端口数 | 1 | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
