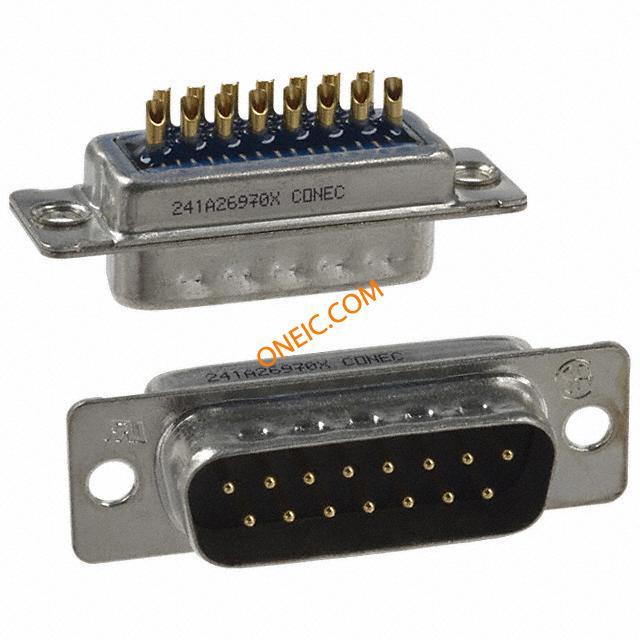

241A26970X
| Manufacturer | |
| Description | D-Sub Standard Connectors 15 POS SOLDER CUP AWG 20 MALE THRUHOLE Conn Filtered D-Sub PIN 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port CONN DSUB FILTER 15POS MALE |
| Category |
商业参数
| 其他名称 | 626-1005 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 额定电压 | 100V | 最大额定电流 | 7.5 A |
| 最小输入电压 | 100VDC | 最小供电电压 | 100VDC |
机械参数
| 颜色 | Black | 深度 | 16.62 mm |
| 高度 | 12.93 mm | 包装方式 | Tray |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Brass / Steel |
| 连接器样式 | D-Sub | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 39.52 mm |
| 端接样式 | Solder | 第一触头极性 | PIN |
| 触点数 | 15 | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 8µin (0.20µm) |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 类型 | Filtered D-Sub | 连接器性别 | Male |
| 系列 | 241A | 产品特性 | Filter, Grounding Indents |
| 端口数 | 1 | ||
环境参数
| 工作温度 | -25°C ~ 105°C | ||
Documents & Media
相关型号
165X10919XE
CONEC
D-Sub Backshells MTLZD PLASTIC HOOD 15 POS Connector Accessories D-SUB Plastic Hood 15 POS Acrylonitrile Butadiene Styrene With Straight Cable Exit With Jack Screw CONN BACKSHELL DB15 STR METALIZD
242A26870X
CONEC
D-Sub Standard Connectors 15 POS SOLDER CUP AWG 20 FM THRUHOLE Conn Filtered D-Sub SKT 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port CONN DSUB FILTER 15POS FEMALE
165X10149XE
CONEC
D-Sub Backshells PLASTIC HOOD 15 POS BLACK Connector Accessories D-SUB Plastic Hood 15 POS Polyamide Black Straight Cable Exit, Jack Screw Single Packed Version CONN BACKSHELL DB15 STR BLACK Connector Accessories D-SUB Plastic Hood 15 POS Polyamide Black Straight Cable Exit, Jack Screw Single Packed
165X11289XE
CONEC
D-Sub Backshells PLASTIC HOOD 15 POS DUAL ENTRY SLIDELOCK Connector Accessories D-SUB Plastic Hood 15 POS Acrylonitrile Butadiene Styrene Black With Top And Side Cable Exit With Slide Lock CONN BACKSHELL DB15 DL W/SIDELOC
165X00789XE
CONEC
D-Sub Backshells SHIELDED 15 POS BLK Connector Accessories D-Sub Hood 15 POS Polycarbonate Black Shielded Version With Metal Screw CONN BACKSHELL DB15 45DEG BLACK
165X02699XE
CONEC
D-Sub Backshells METAL HOOD 15 POS ANGLED Connector Accessories D-SUB Metal Hood 15 POS Zinc Die Cast Nickel With Side Cable Exit And Jack Screw CONN BACKSHELL DB15 45DEG METAL
165X02619XE
CONEC
D-Sub Backshells METAL HOOD 15 POS STRAIGHT Connector Accessories D-SUB Hood Zinc Die Cast 15 POS Nickel With Straight Cable Exit And Jack Screws CONN BACKSHELL DB15 STR METAL
165X11329XE
CONEC
D-Sub Backshells MTLZD PLASTIC HOOD 15P W/JACK SCREW Connector Accessories D-SUB Plastic Hood 15 POS Acrylonitrile Butadiene Styrene With Top And Side Cable Exit With Jack Screw CONN BACKSHELL DB15 DL METALIZED
165X11249XE
CONEC
D-Sub Backshells PLASTIC HOOD 15 POS BLK DUAL ENTRY Connector Accessories D-SUB Plastic Hood 15 POS Acrylonitrile Butadiene Styrene Black With Top And Side Cable Exit With Jack Screw CONN BACKSHELL DB15 DL EXIT BLK
242A20650X
CONEC
D-Sub High Density Connectors 15 POS HD SOLDER PIN FM STRT THREADED Conn High Density D-Sub SKT 15 POS 2.28mm Solder ST Thru-Hole 15 Terminal 1 Port CONN DSUB FILTER HD 15PS FML PCB
165X10399XE
CONEC
D-Sub Backshells PLASTIC HOOD 15 POS BLK STRIAGHT ENTRY Connector Accessories D-SUB One Piece Plastic Hood 15 POS Polyamide Straight Entry CONN BACKSHELL DB15 STR BLACK
165X10449XE
CONEC
D-Sub Backshells PLASTIC HOOD 15 POS BLK SIDE ENTRY Connector Accessories D-SUB One Piece Plastic Hood 15 POS Polyamide Side Entry CONN BACKSHELL DB15 90DEG BLACK
165X10199X
CONEC
D-Sub Backshells DSUB 9-50POS/JK SCRW STR ENTRY PLSTC HOOD CONN BACKSHELL DB15 STR BLACK
165X11879XE
CONEC
D-Sub Backshells PLASTIC HOOD 15 POS GRAY DUAL ENTRY Connector Accessories D-Sub Hood 15 POS Polycarbonate Gray With Top And Side Cable Exit CONN BACKSHELL DB15 DL EXIT GREY

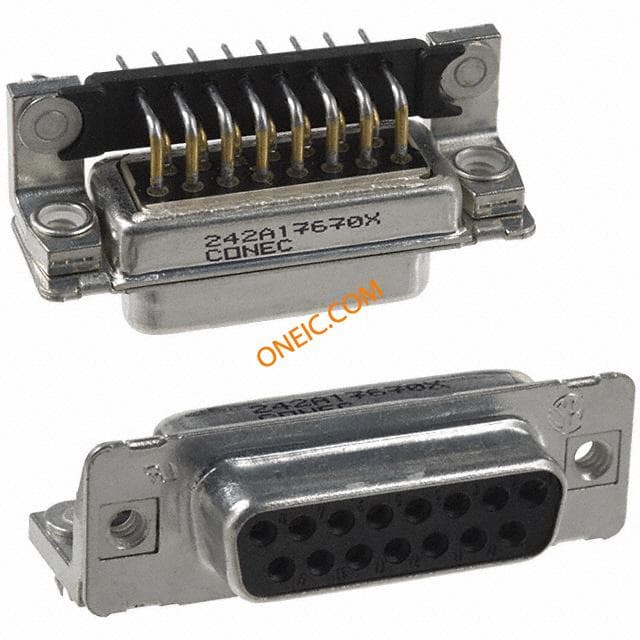

242A17670X
