点击放大查看

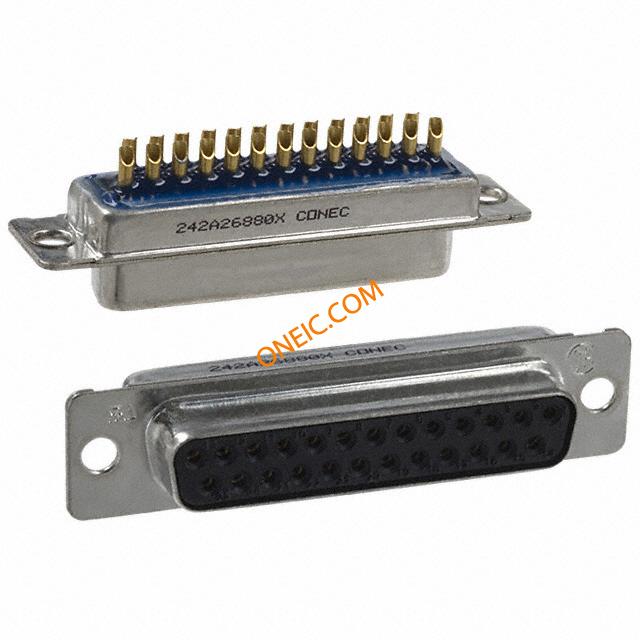

242A26880X
| Manufacturer | |
| Description | D-Sub Standard Connectors 25 POS SOLDER CUP AWG 20 FM THRUHOLE Conn Filtered D-Sub SKT 25 POS Solder Cup ST Panel Mount 25 Terminal 1 Port CONN DSUB FILTER 25POS FEMALE |
| Category |
商业参数
| 其他名称 | 626-1009 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 100 V | 最大额定电流 | 5 A |
| 最小输入电压 | 100VDC | ||
机械参数
| 颜色 | Black | 深度 | 16.7 |
| 高度 | 12.93 | 包装方式 | Tray |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Straight | 外壳镀层 | Gold over Nickel |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 连接器样式 | D-Sub |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 53.42 | 端接样式 | Solder |
| 第一触头极性 | SKT | 触点数 | 25 |
| 位数 | 25 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 8µin (0.20µm) | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 类型 | Filtered D-Sub | 连接器性别 | Female |
| 系列 | 242A | 产品特性 | Filter |
| 端口数 | 1 | ||
环境参数
| 工作温度 | - 25 C to + 105 C | ||
Documents & Media
相关型号
165X10929XE
CONEC
D-Sub Backshells MTLZD PLASTIC HOOD 25 POS Connector Accessories D-SUB Plastic Hood 25 POS Acrylonitrile Butadiene Styrene With Straight Cable Exit With Jack Screw CONN BACKSHELL DB25 STR METALIZD
165X13239XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS DUAL ENTRY NO HDWR Connector Accessories D-SUB Plastic Hood 25 POSPolypropylene Black With Two Entries Straight And Side Hinged Version CONN BACKSHELL DB25 DL EXIT BLK
241A26980X
CONEC
D-Sub Standard Connectors 25 POS SOLDER CUP AWG 20 MALE THRUHOLE Conn Filtered D-Sub PIN 25 POS Solder Cup ST Panel Mount 25 Terminal 1 Port CONN DSUB FILTER 25POS MALE
165X10159XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS BLACK Connector Accessories D-SUB Plastic Hood 25 POS Polyamide Black Straight Cable Exit, Jack Screw Single Packed Version CONN BACKSHELL DB25 STR BLACK
165X02709XE
CONEC
D-Sub Backshells METAL HOOD 25 POS ANGLED Connector Accessories D-SUB Metal Hood 25 POS Zinc Die Cast Nickel With Side Cable Exit And Jack Screw CONN BACKSHELL DB25 45DEG METAL
165X02629XE
CONEC
D-Sub Backshells METAL HOOD 25 POS STRAIGHT Connector Accessories D-SUB Metal Hood 25 POS Zinc Die Cast Nickel With Straight Cable Exit And Jack Screw CONN BACKSHELL DB25 STR METAL
165X11299XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS DUAL ENTRY SLIDELOCK Connector Accessories D-SUB Plastic Hood 25 POS Acrylonitrile Butadiene Styrene Black With Top And Side Cable Exit With Slide Lock CONN BACKSHELL DB25 DL W/SIDELOC
165X11259XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS BLK DUAL ENTRY Connector Accessories D-SUB Plastic Hood 25 POS Acrylonitrile Butadiene Styrene Black With Top And Side Cable Exit With Jack Screw CONN BACKSHELL DB25 DL EXIT BLK
165X13199XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS Connector Accessories D-SUB Plastic Hood 25 POS Polyamide With Straight Cable Exit CONN BACKSHELL DB25 STR PLASTIC
165X10409XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS BLK STRIAGHT ENTRY Connector Accessories D-SUB One Piece Plastic Hood 25 POS Polyamide Straight Entry CONN BACKSHELL DB25 STR BLACK
165X10459XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS BLK SIDE ENTRY Connector Accessories D-SUB One Piece Plastic Hood 25 POS Polyamide Side Entry CONN BACKSHELL DB25 90DEG BLACK
165X11889XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS GRAY DUAL ENTRY Connector Accessories D-Sub Hood 25 POS Polycarbonate Gray With Top And Side Cable Exit CONN BACKSHELL DB25 DL EXIT GREY
165X11339XE
CONEC
D-Sub Backshells MTLZD PLASTIC HOOD 25P W/JACK SCREW Connector Accessories D-SUB Plastic Hood 25 POS Acrylonitrile Butadiene Styrene With Top And Side Cable Exit With Jack Screw CONN BACKSHELL DB25 DL METALIZED
165X00799XE
CONEC
D-Sub Backshells SHIELDED 25 POS BLK Connector Accessories D-Sub Hood 25 POS Polycarbonate Black Shielded Version With Metal Screw CONN BACKSHELL DB25 45DEG BLACK

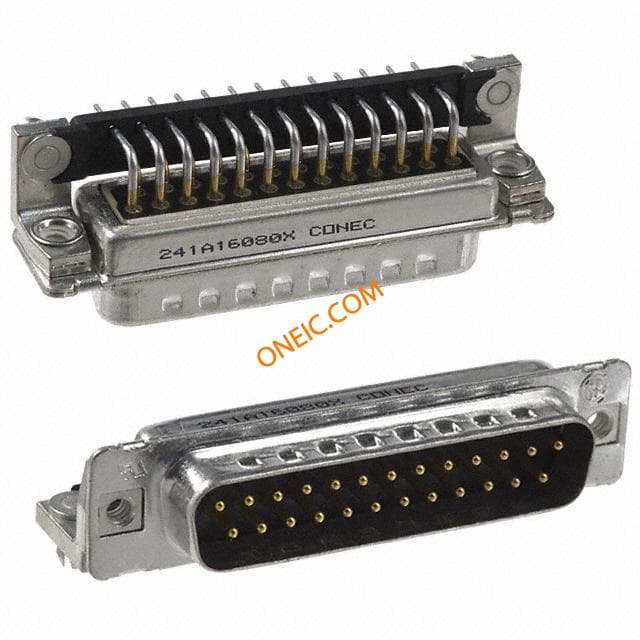

241A16080X
