点击放大查看

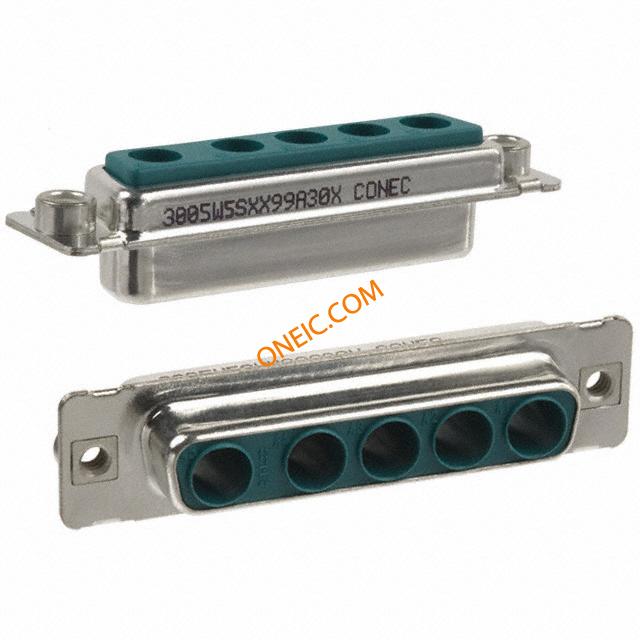

3005W5SXX99A30X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 5W5 FEMALE Conn Housing F 5Power POS Crimp ST Panel Mount CONN DSUB COMBO 5POS 5W5 SOCKET
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1107	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

机械参数

颜色	Green	深度	12.45
高度	12.93	包装方式	Tray
外壳尺寸	2	触头类型	Coax or Power
外壳颜色	Green	安装类型	Straight
外壳镀层	Tin	连接器类型	Receptacle for Female Contacts
法兰特征	Board Side (4-40)	安装样式	Panel
排数	2	外壳材料（壳体）	Steel
连接器样式	D-Sub, Combo	壳体材料	Polybutylene Terephthalate
总长度	53.42	端接样式	Crimp
触点数	5Power	介电材料	Polybutylene Terephthalate (PBT), Glass Filled
位数	5 (Coax or Power)	外壳镀层厚度	320µin (8.13µm)
外壳材料及表面处理	Steel, Tin Plated	典型触点布局	5W5S
外壳尺寸，连接器布局	3 (DB, B) - 5W5

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	Female	系列	300

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1A692.pdf

PDF Document

3005W5SXX99A30X Drawing

PDF Document

Comb D-SUB Connectors

PDF Document

Combination D-SUB Catalog

PDF Document

Comb D-SUB Conn Tech Data
