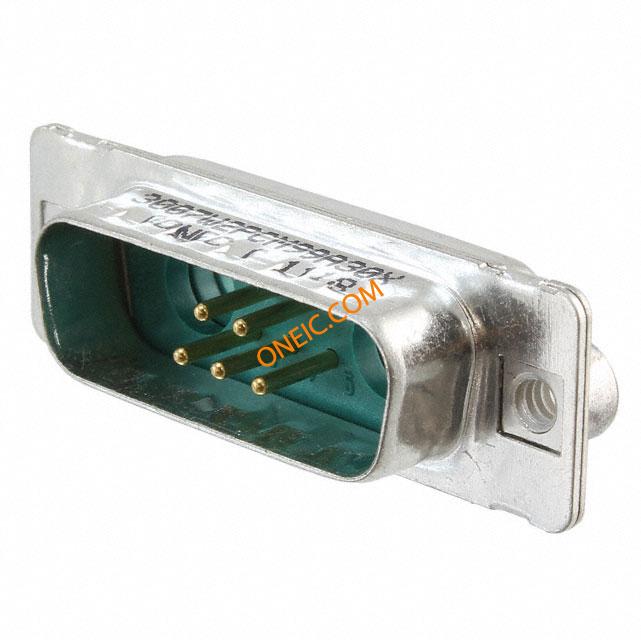

3007W2PCM99A30X
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors HIGH POWER CONTACT MALE SOLDER CUP CONN DSUB PLUG 7W2 SLD CUP GOLD |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 5 A |
Mechanical
| Color | Green | Height | 12.93 mm |
| Packaging | Bulk | Insulation | Insulated |
| Termination | Solder Cup | Contact Type | Coax or Power (Not Included) and Signal |
| Mounting Type | Straight | Shell Plating | Tin |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub, Combo | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 7 | Number of Positions | 7 (5 + 2 Coax or Power) |
| Shell Material, Finish | Steel, Tin Plated | Contact Layout, Typical | 7W2 |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
Product Info
| Gender | Male | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
