点击放大查看

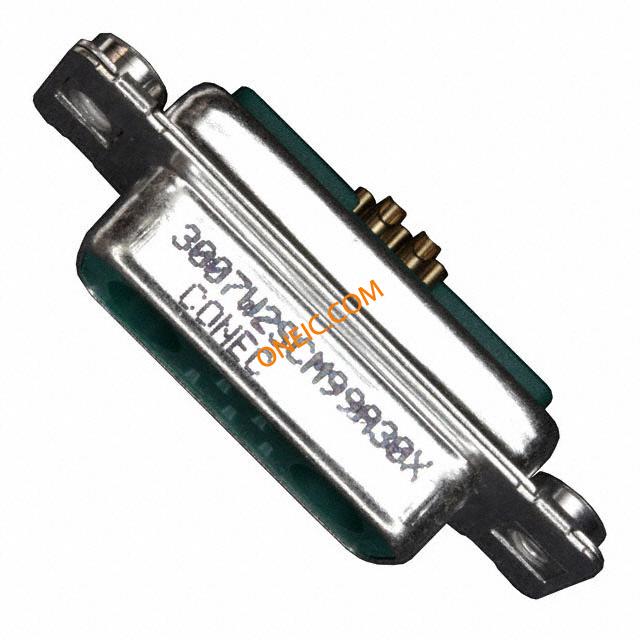

3007W2SCM99A30X
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 7W2 SOLDER CUP FEMALE CONN DSUB COMBO 7POS 7W2 SOCKET |
| Category |
商业参数
| 其他名称 | 626-1115 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 5A |
机械参数
| 颜色 | Green | 包装方式 | Tray |
| 外壳尺寸 | 2 | 端接方式 | Solder Cup |
| 触头类型 | Coax or Power (Not Included) and Signal | 安装类型 | Straight |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, Combo |
| 触头材料 | Copper Alloy | 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 端接样式 | Solder | 位数 | 7 (5 + 2 Coax or Power) |
| 外壳材料及表面处理 | Steel, Tin Plated | 典型触点布局 | 7W2S |
| 接触镀层厚度 | 30µin (0.76µm) | 外壳尺寸，连接器布局 | 2 (DA, A) - 7W2 |
产品信息
| 连接器性别 | Female | 系列 | 300 |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
Documents & Media
相关型号
3007W2PCM99A10X
CONEC
D-Sub Mixed Contact Connectors 7W2 SOLDER CUP MALE Conn D-Subminiature M 5Signal/2Cavity POS Solder Cup ST Panel Mount 7 Terminal 1 Port CONN DSUB COMBO 7POS 7W2 PLUG
165X13379XE
CONEC
D-Sub Backshells BLK SHELL SIZE 2 STR FOR COMBO Connector Accessories D-SUB Plastic Hood 15 POS Polybutylene Terephthalate Black With Straight Cable Exit Big Space Inside CONN BACKSHELL DB15 STR BLACK Connector Accessories D-SUB Plastic Hood 15 POS Polybutylene Terephthalate Black With Straight Cable Exit Big
165X14829XE
CONEC
D-Sub Backshells HOOD 15 POS Connector Accessories Water Resistant D-SUB Hood Polybutylene Terephthalate Black With Jack Screw CONN HOOD DSUB 15POS IP67 BLACK

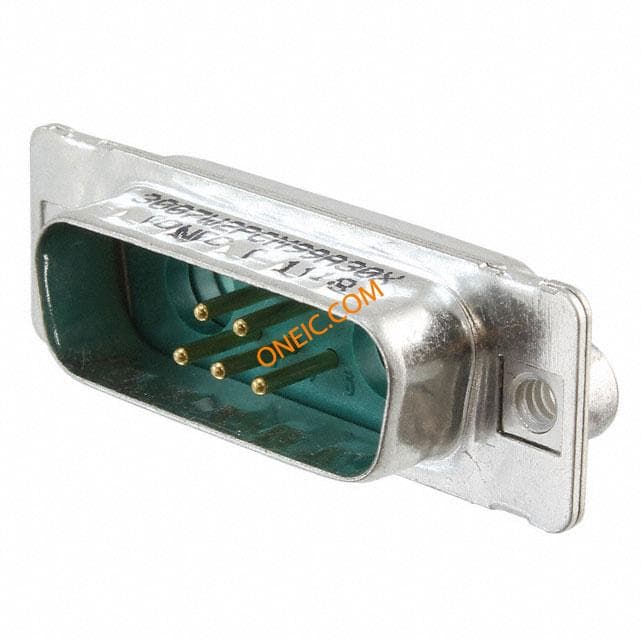

3007W2PCM99A30X
