点击放大查看

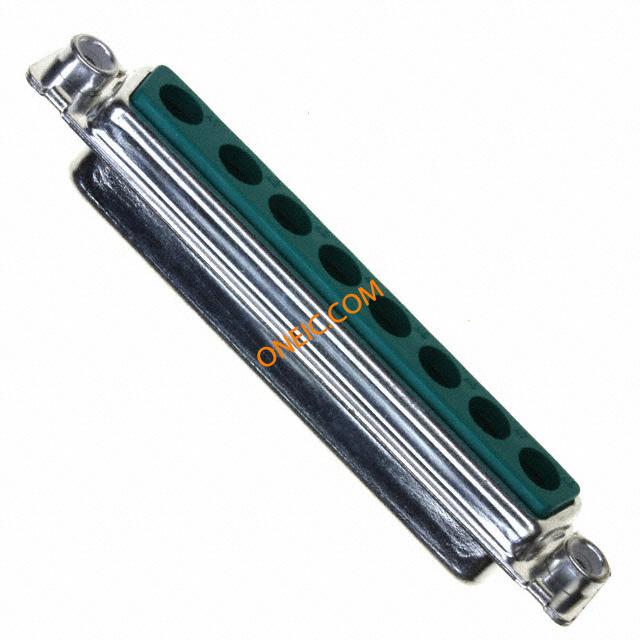

3008W8SXX99A30X
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 8W8 FEMALE Conn Housing RCP 8 POS Crimp ST Cable Mount CONN DSUB COMBO 8POS 8W8 SOCKET |
| Category |
商业参数
| 其他名称 | 626-1111 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Green | 深度 | 12.45 |
| 高度 | 12.93 | 包装方式 | Tray |
| 外壳尺寸 | 4 | 触头类型 | Coax or Power |
| 外壳颜色 | Green | 安装类型 | Straight |
| 外壳镀层 | Tin | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Board Side (4-40) | 安装样式 | Panel |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub, Combo | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 69.7 | 端接样式 | Crimp |
| 触点数 | 8 | 介电材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 位数 | 8 (Coax or Power) | 外壳镀层厚度 | 320µin (8.13µm) |
| 外壳材料及表面处理 | Steel, Tin Plated | 典型触点布局 | 8W8S |
| 外壳尺寸，连接器布局 | 4 (DC, C) - 8W8 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | Female | 系列 | 300 |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
