点击放大查看

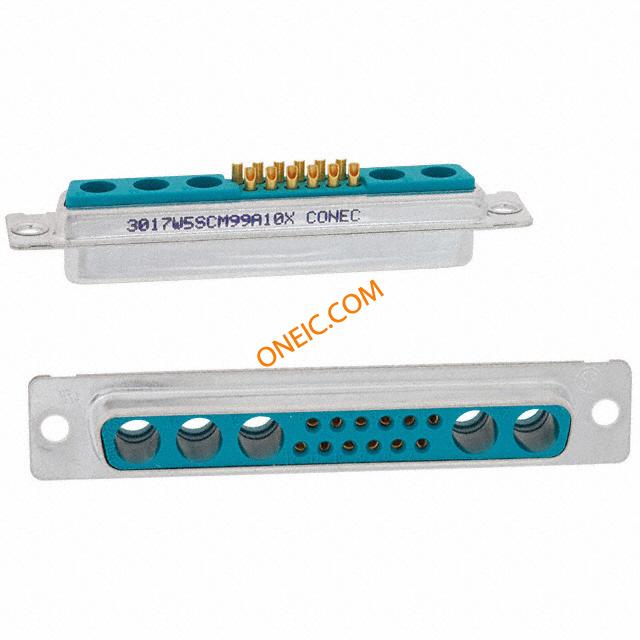

3017W5SCM99A10X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 17W5 SOLDER CUP FEMALE CONN DSUB COMBO 17POS 17W5 SOCKT
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1129	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

250V

最大额定电流

机械参数

颜色	Green	包装方式	Tray
外壳尺寸	4	端接方式	Solder Cup
触头类型	Coax or Power (Not Included) and Signal	安装类型	Straight
外壳镀层	Tin	连接器类型	Receptacle, Female Sockets
接触镀层	Gold	法兰特征	Housing/Shell (Unthreaded)
安装样式	Panel	排数	2
外壳材料（壳体）	Steel	连接器样式	D-Sub, Combo
触头材料	Copper Alloy	壳体材料	Polybutylene Terephthalate (PBT), Glass Filled
端接样式	Solder	位数	17 (12 + 5 Coax or Power)
外壳材料及表面处理	Steel, Tin Plated	典型触点布局	17W5
接触镀层厚度	30µin (0.76µm)	外壳尺寸，连接器布局	4 (DC, C) - 17W5

产品信息

连接器性别

Female

系列

300

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1A1408.pdf

PDF Document

Comb D-SUB Conn Tech Data

PDF Document

3017W5SCM99A10X Drawing

PDF Document

Combination D-SUB Spec
