点击放大查看

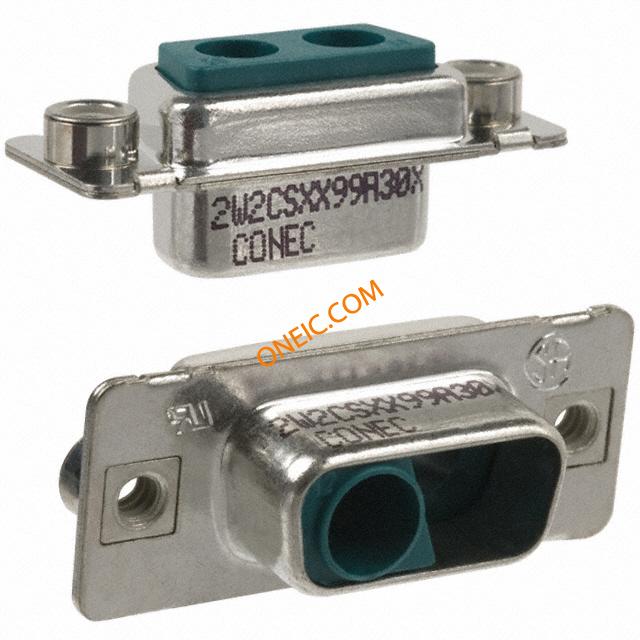

302W2CSXX99A30X
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 2W2C FEMALE Conn Housing F 2Power POS Crimp ST CONN DSUB COMBO 2POS 2W2C SOCKET |
| Category |
商业参数
| 其他名称 | 626-1095 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Green | 深度 | 12.93 |
| 高度 | 12.45 | 长度 | 31.19 |
| 包装方式 | Tray | 外壳尺寸 | 1 |
| 方向 | Straight | 触头类型 | Coax or Power |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Board Side (4-40) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, Combo |
| 端接样式 | Crimp | 连接器颜色 | Green |
| 触点数 | 2Power | 介电材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 位数 | 2 (Coax or Power) | 绝缘材料 - 材质 | Polybutylene Terephthalate |
| 外壳镀层厚度 | 320µin (8.13µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 典型触点布局 | 2W2C | 外壳尺寸，连接器布局 | 1 (DE, E) - 2V2, 2W2C |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | Female | 系列 | 300 |
| 其他规格 | 1 | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
