点击放大查看

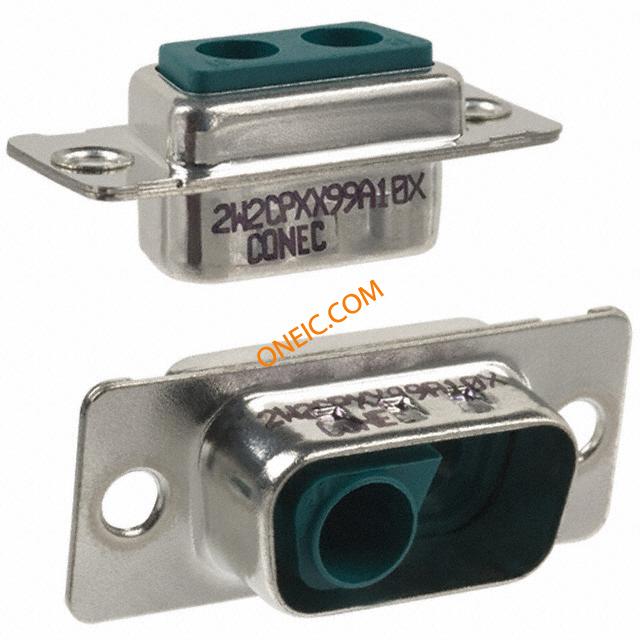

302W2CPXX99A10X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 2W2C MALE Conn Housing M 2Power POS Crimp ST Panel Mount CONN DSUB COMBO 2POS 2W2C PLUG
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1094	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

机械参数

颜色	Green	深度	12.37
高度	12.93	包装方式	Tray
外壳尺寸	1	触点形式	Coax or Power
触头类型	Coax or Power	安装类型	Straight
外壳镀层	Tin	连接器类型	Plug for Male Contacts
法兰特征	Housing/Shell (Unthreaded)	安装样式	Panel
排数	2	外壳材料（壳体）	Steel
连接器样式	D-Sub, Combo	壳体材料	Steel
总长度	31.19	端接样式	Crimp
触点数	2Power	介电材料	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
位数	2 (Coax or Power)	外壳材料及表面处理	Steel, Tin Plated
典型触点布局	2W2C	外壳尺寸，连接器布局	1 (DE, E) - 2V2, 2W2C

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	Male	系列	300
产品特性	Grounding Indents	主要用途	Grounding Indents
输出配置	Free Hanging (In-Line)

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1IJ8A.pdf

PDF Document

3024WCPXX99A10X Drawing

PDF Document

Comb D-SUB Connectors

PDF Document

Comb D-SUB without Contacts

PDF Document

Combination D-SUB Spec

相关型号

302W2CSXX99A10X

CONEC

D-Sub Mixed Contact Connectors 2W2C FEMALE CONN DSUB COMBO 2POS 2W2C SOCKET

¥12.9029

详情

302W2CSXX99A30X

CONEC

D-Sub Mixed Contact Connectors 2W2C FEMALE Conn Housing F 2Power POS Crimp ST CONN DSUB COMBO 2POS 2W2C SOCKET

¥13.3960

详情

131C11019X

CONEC

D-Sub Contacts HIGH POWER CONTACT 10A CRIMP MALE Contact PIN Crimp ST Cable Mount CONN PIN COMBO-D 16-20AWG CRIMP

¥9.9756

详情

165X13369XE

CONEC

D-Sub Backshells BLK SHELL SIZE 1 STR FOR COMBO Connector Accessories D-SUB Plastic Hood 9 POS Polybutylene Terephthalate Black With Straight Cable Exit Big Space Inside CONN BACKSHELL DB9 STR BLACK Connector Accessories D-SUB Plastic Hood 9 POS Polybutylene Terephthalate Black With Straight Cable Exit Big S

¥33.6529

详情

165X14819XE

CONEC

D-Sub Backshells HOOD 9 POS Connector Accessories Water Resistant D-SUB Hood Polybutylene Terephthalate Black With Jack Screw CONN HOOD DSUB 9POS IP67 BLACK

¥100.5720

详情

131C11029X

CONEC

D-Sub Contacts HIGH POWER CONTACT 20A CRIMP MALE Contact PIN Crimp ST Cable Mount CONN PIN COMBO-D 12-14AWG CRIMP

¥17.6439

详情

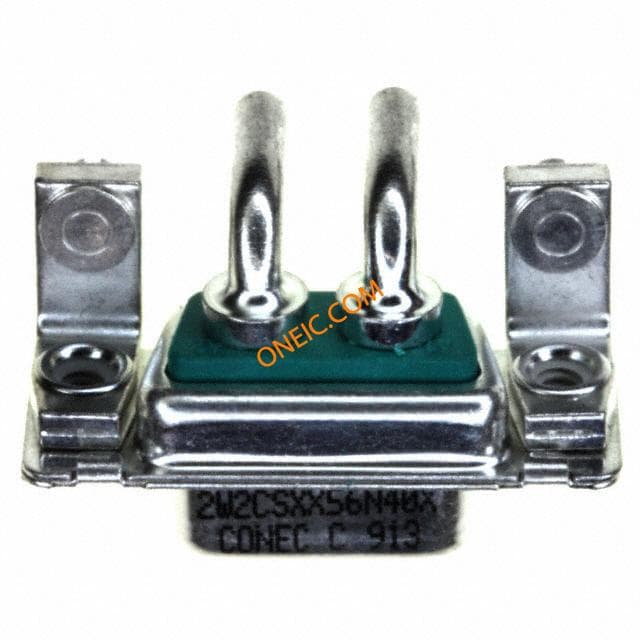

302W2CSXX56N40X
