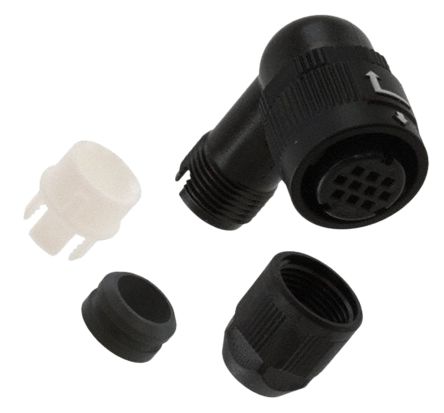

HR34B-12WLPA-10SC
| Manufacturer | |
| Description | Standard Circular Connector 10 Pos. 3A 200V Female crimp CONN PLUG 10POS FEMALE CRIMP Hirose HR34B 系列 10路 电缆安装 直角 连接器 插头 , 母触点, 卡口式接合 |
| Category |
Business
| Standard Package | 50 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 200 V, 250 V | Connector Impedance | 微型 |
| Current Rating (Max) | 3 A | Connector - Voltage Input | Male |
Mechanical
| Outline | 12 | Packaging | Bulk |
| Shell Size | 12 | Orientation | N (Normal) |
| Shell Style | Plug | Contact Form | Crimp |
| Contact Type | Crimp | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Fluororubber | Connector Type | Plug for Female Contacts |
| Contact Finish | 金 | Fastening Type | Bayonet Lock |
| Mounting Style | Wire | Shell Material | Hybrid |
| Contact Material | 磷铜 | Housing Material | 铝合金，聚酰胺树脂，锌合金 |
| Termination Rows | 压接 | Termination Style | Crimp |
| Mating Orientation | Bayonet | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | 12 |
| Shell Material, Finish | Aluminum, Polyamide Resin and Zinc, Black Chromate Plated | ||
Product Info
| Note | Contacts Not Provided | Series | HR34B |
| Product Type | Plugs | Output Configuration | Free Hanging (In-Line) |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | +125°C |
