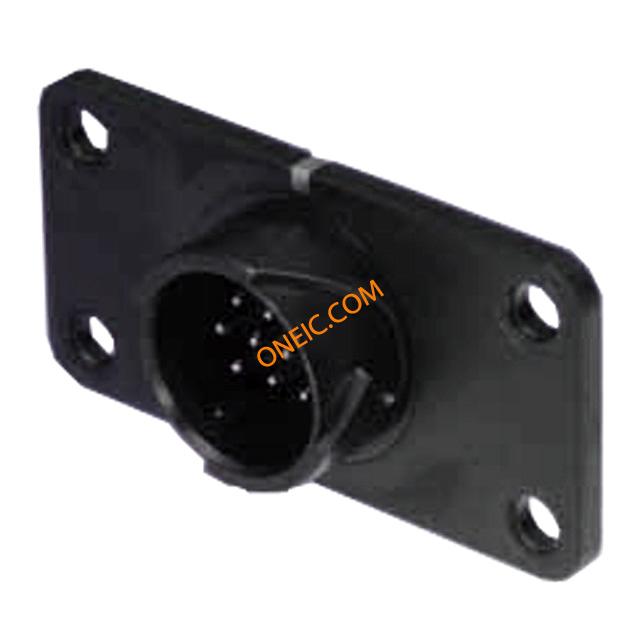

HR34B-12WR-10PD(71)
| Manufacturer | |
| Description | Standard Circular Connector 10 Pos. 3A 200V Male thru-hole CONN RCPT 10POS MALE WALL MNT Receptacle through hole 10-way RECEPTACLE10-WAY Hirose HR34B 系列 10路 面板安装 直向 连接器 插座 , 公触点, 卡口式接合 |
| Category |
Business
| Standard Package | 50 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 200VAC, 250VDC | Connector Impedance | 微型 |
| Current Rating (Max) | 3A | Connector - Voltage Input | Miniature |
Mechanical
| Outline | 12 | Packaging | Tray |
| Shell Size | 12 | Orientation | N (Normal) |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | 公插 | Mounting Type | Panel Mount, Flange |
| Shell Plating | Chromate | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Panel | Shell Material | Zinc |
| Connector Usage | Bayonet | Contact Material | Copper Alloy |
| Housing Material | Zinc Alloy | Termination Rows | 焊接 |
| Termination Style | Solder Cup | 1st Contact Gender | Male |
| Mating Orientation | Bayonet | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | 12 |
| Shell Material, Finish | Zinc Alloy, Black Chromate Plated | ||
Product Info
| Gender | Female | Series | HR34B |
| Product Type | Connectors | ||
Environmental
| Seal Rating | IP67, IP68 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -25°C ~ 125°C | ||
