点击放大查看

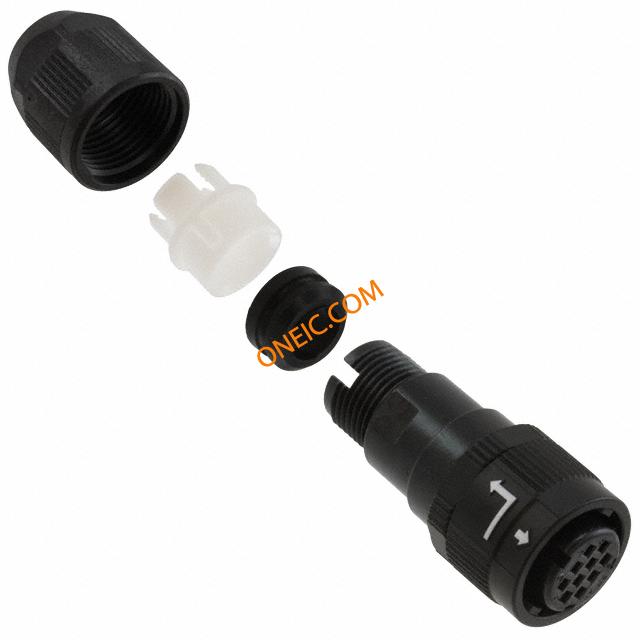

HR34B-12WPA-10SC
| Manufacturer | |
| Description | Standard Circular Connector 10 Pos. 3A 200V Female crimp CONN PLUG 10POS FEMALE CRIMP Hirose HR34B 系列 10路 电缆安装 直向 连接器 插头 , 母触点, 卡口式接合 |
| Category |
Business
| Other Names | HR34B12WPA10SC | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 200 V, 250 V | Connector Impedance | 微型 |
| Current Rating (Max) | 3 A | Connector - Voltage Input | Male |
Mechanical
| Outline | 12 | Packaging | Bulk |
| Shell Size | 12 | Orientation | N (Normal) |
| Shell Style | Plug | Contact Form | Crimp |
| Contact Type | Crimp | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Chromate | Connector Type | Plug for Female Contacts |
| Contact Finish | 金 | Fastening Type | Bayonet Lock |
| Mounting Style | Wire | Shell Material | Hybrid |
| Contact Material | 磷铜 | Housing Material | 铝合金，聚酰胺树脂，锌合金 |
| Termination Rows | 压接 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Bayonet |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Size - Insert | 12 | Shell Material, Finish | Aluminum, Polyamide Resin and Zinc, Black Chromate Plated |
Product Info
| Note | Contacts Not Provided | Series | HR34B |
| Product Type | Plugs | Output Configuration | Free Hanging (In-Line) |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | +125°C |
