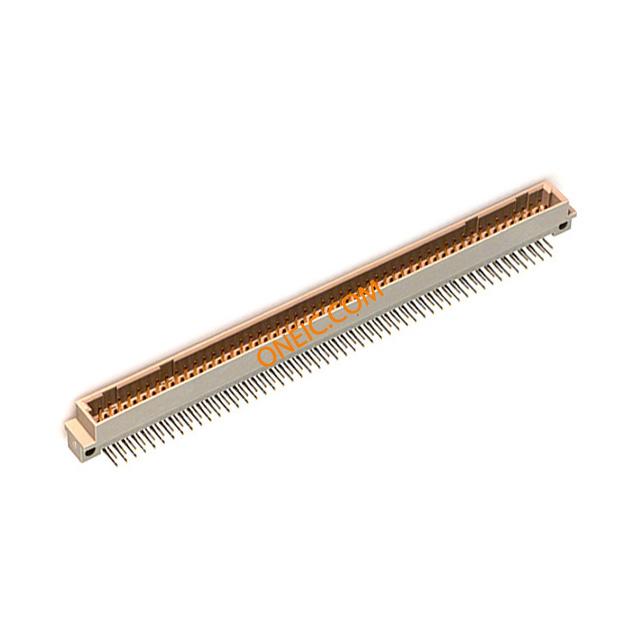

PCN10-100P-2.54DS
| Manufacturer | |
| Description | DIN 41612 コネクタ Obsolete DIN CONN HEADER 100POS 2 ROW R/A |
| Category |
商业参数
| 标准包装数量 | 24 | ||
合规参数
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 间距 | 0.100" (2.54mm) | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Male Pins | 接触镀层 | Gold |
| 排数 | 2 | 位数 | 100 |
| 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT) | 接触镀层厚度 | 8µin (0.20µm) |
产品信息
| 样式 | B | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 85°C | ||
Documents & Media
相关型号

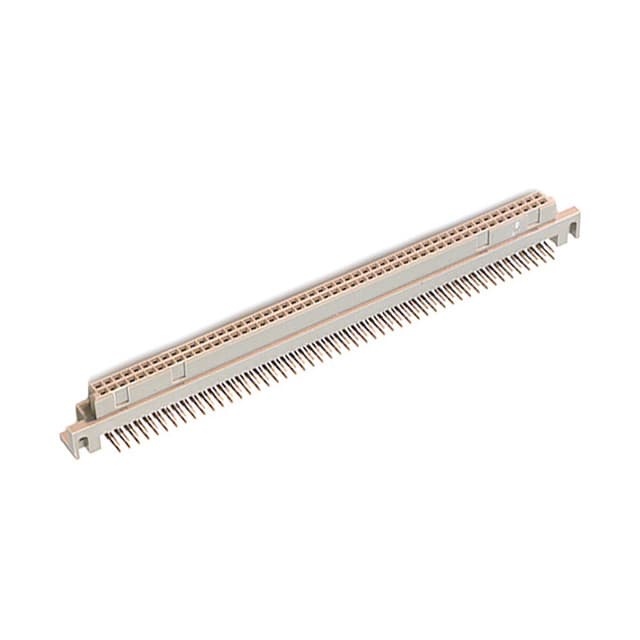

PCN10C-100S-2.54DS(72)
