点击放大查看

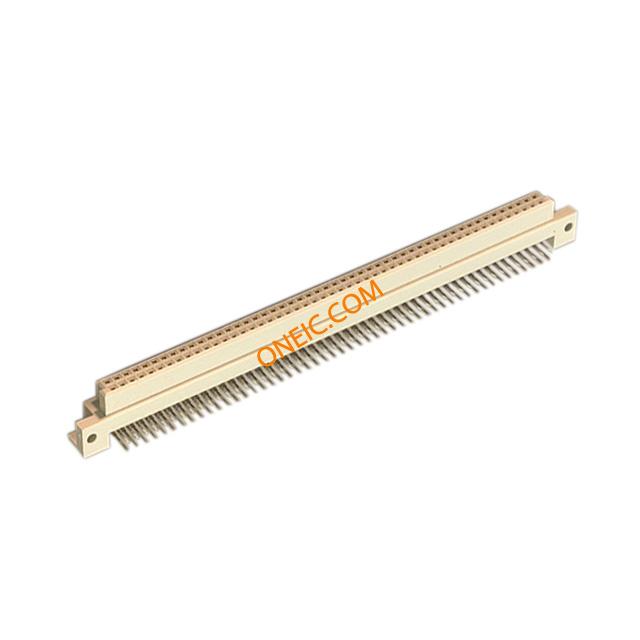

PCN13-100S-2.54DS(71)
| Manufacturer | |
| Description | DIN 41612 Connectors DIN RCPT 100P DUAL R/A CONN DIN RCPT 100POS DUAL RT ANG |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 10 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 300 VAC | 最大额定电流 | 2A |
机械参数
| 间距 | 0.100" (2.54mm) | 包装方式 | Tray |
| 端接方式 | Solder | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 端接样式 | Through Hole | 触点数 | 100 |
| 位数 | 100 | 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT) |
产品信息
| 样式 | B | 系列 | PCN13 |
| 产品子类型 | Receptacles | 加载位置数 | All |
环境参数
| 级别、等级 | 1 | 工作温度 | -55°C ~ 85°C |
Documents & Media
PDF Document
PDF Document
