点击放大查看

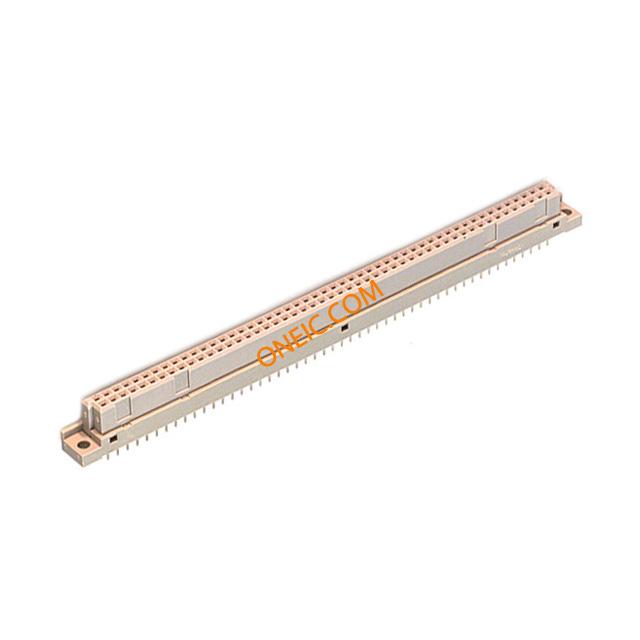

PCN10C-100S-2.54DSA(72)
| Manufacturer | |
| Description | DIN 41612 Connectors DIN REC 100P DUAL STR CONN DIN RECEPT 100POS DUAL STR Conn DIN 41612 RCP 100 POS 2.54mm Solder ST Thru-Hole |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 20 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 300 VAC | 接触电阻 | 20 mohm |
| 最大额定电流 | 2A | 最小供电电压 | 300VAC |
机械参数
| 深度 | 8.1 mm | 间距 | 0.100" (2.54mm) |
| 高度 | 11.5 mm | 包装方式 | Tray |
| 端接方式 | Solder | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 总长度 | 140.72 mm | 端接样式 | Through Hole |
| 触点数 | 100 | 位数 | 100 |
| 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT) | 接触镀层厚度 | 8µin (0.20µm) |
产品信息
| 类型 | DIN 41612 | 样式 | B |
| 连接器性别 | RCP | 系列 | PCN10 |
| 已删除 | Compliant | 产品子类型 | Receptacles |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
