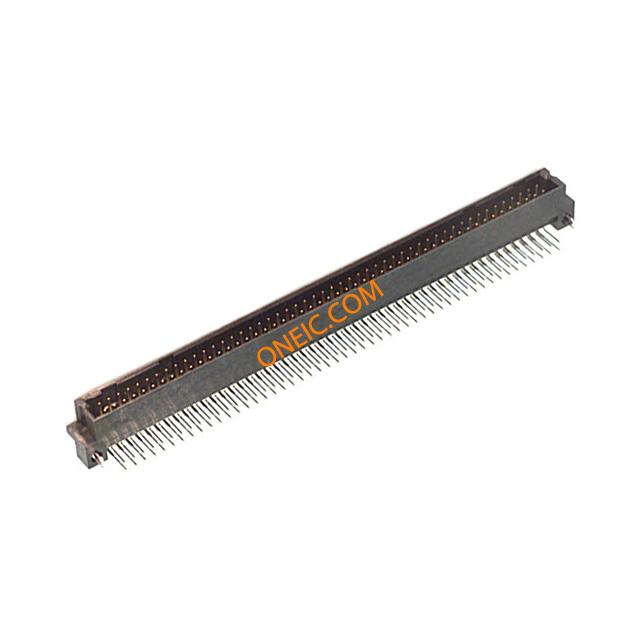

PCN10MC-100P-2.54DS(72)
| Manufacturer | |
| Description | DIN 41612 コネクタ DIN 41612 HDR 100P 2.54mm Solder RA T CONN DIN HEADER 100POS 2ROW R/A DIN 41612 Connectors DIN 41612 HDR 100P 2.54mm Solder RA T |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | DIN 41612 Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 300 VAC | 最大额定电流 | 2A |
机械参数
| 间距 | 0.100" (2.54mm) | 包装方式 | Tray |
| 端接方式 | Solder | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Male Pins | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Solder |
| 触点数 | 100 | 位数 | 100 |
| 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT) | 接触镀层厚度 | 8µin (0.20µm) |
产品信息
| 样式 | B | 系列 | PCN10 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
