点击放大查看

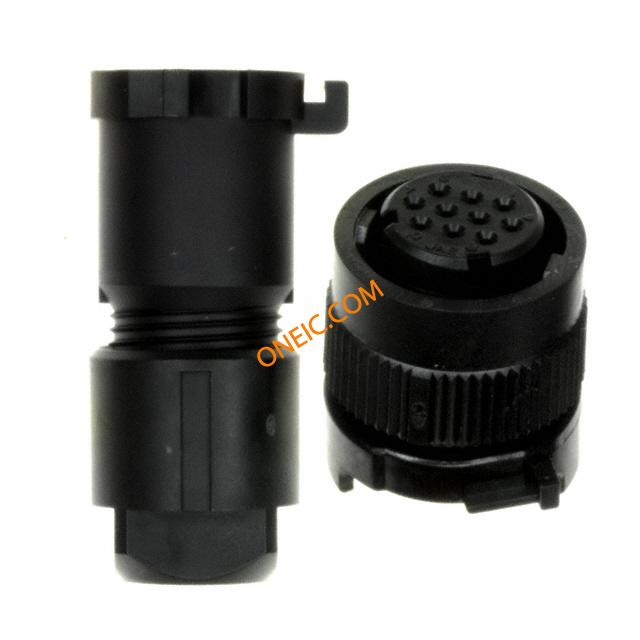

JN1DS10SL1

Manufacturer	Japan Aviation Electronics Industry, Ltd.
Description	Standard Circular Connector 10P PLUG STRAIGHT CONN PLUG 10PS CRIMP SOCKET CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS 10P CIRCULAR STRAIGHT PLUG
Category	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	670-1060	产品类别	Standard Circular Connector
标准包装数量	10	工厂包装数量	1

合规参数

RoHS	RoHS Compliant	汽车级	NO
无铅定义	RoHS-conform

电气参数

额定电压

200 V

最大额定电流

3 A

机械参数

包装方式	Tray	方向	N (Normal)
外壳样式	Plug	触点尺寸	22
触头类型	Crimp	安装类型	Free Hanging (In-Line)
行程角度	Straight	连接器类型	Plug for Female Contacts
接触镀层	Gold	紧固类型	Push-Twist
安装样式	Free Hanging	主要材料	Sealed
端接样式	Crimp	触点数	10
位数	10	外壳尺寸-插件	S
外壳材料及表面处理	Synthetic Resin	触点材料 - 镀层	THT

产品信息

备注	Contacts Not Provided	类型	CablePlug
系列	JN1 / JN2	制造商全称	JN1Series
产品子类型	Connectors

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-20 TO 125 °C

Documents & Media

PDF Document

PDF Document

PDF Document

PDF Document
