点击放大查看
JN1FS10SL1
| Manufacturer | |
| Description | Standard Circular Connector 10P #22 R/A CIR PLUG CONN HSG PLUG 10POS RA CRIMP SKT CIRCULAR CONNECTOR - PLASTIC - PCB/PANEL TO CABLE - IP67; 10 CONTACTS CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS 10P CIRCULAR PLUG RIGHT ANGLE |
| Category |
商业参数
| 其他名称 | 670-1065 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 10 | 工厂包装数量 | 1 |
合规参数
| RoHS | Compliant | 汽车级 | NO |
| 无铅定义 | RoHS-conform | ||
电气参数
| 最大额定电流 | 3 A | ||
机械参数
| 包装方式 | Tray | 方向 | N (Normal) |
| 外壳样式 | Plug | 触点尺寸 | 22 |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line), Right Angle |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Push-Twist |
| 主要材料 | Sealed | 端接样式 | Crimp |
| 触点数 | 10 | 位数 | 10 |
| 外壳尺寸-插件 | S | 外壳材料及表面处理 | Synthetic Resin |
产品信息
| 备注 | Contacts Not Provided | 系列 | JN1 / JN2 |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | ||
Documents & Media
相关型号
JN1-22-22S-PKG100
JAE Electronics
Standard Circular Contacts 22p contacts for JN1/2 series CONTACT SKT CRIMP 21-25AWG GOLD JN1andJN2StandardCircular22pConnectors(PricedasPackof100) LOOSE SOCKET CONTACT 25-21AWG
JN1-22-26S-10000
JAE Electronics
Standard Circular Contacts 26p contacts for JN1/2 series CONTACT SKT CRIMP 26-28AWG GOLD

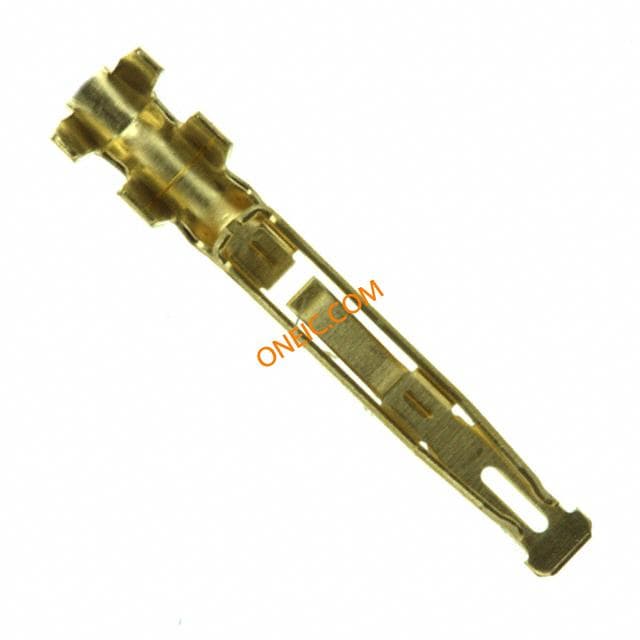

JN1-22-22S-10000
JAE Electronics
Standard Circular Contacts JN1/JN2 #22 CONTACT SOLD INDIVIDUALLY CONTACT SKT CRIMP 21-25AWG GOLD SOCKETCONTACTJN1/JN2Series#25to#21AWG10,000pcreel SOCKET CONTACT AWG 21-24

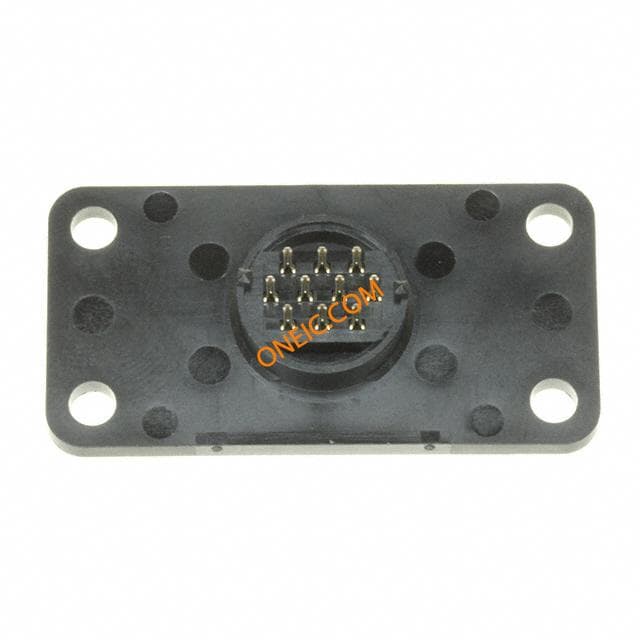

JN1AS10UL1
JAE Electronics
Standard Circular Connector 10P RECPT PANEL MT CONN RCPT WATERPRF 10POS T/H PIN CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS 10P CIRCULAR PANEL MOUNT RECEPT
JN2AS10UL1-R
JAE Electronics
Standard Circular Connector 10P PANEL MOUNT THRU HOLE PIN CONN RCPT 10POS #22 T/H PIN CIRCULARCONNECTOR-METAL-PCB/PANELTOCABLE-IP67,10CONTACTS 10P SMALL CIRCULAR CONNECTOR M
JN1-22-26S-PKG100
JAE Electronics
Standard Circular Contacts 26p contacts for JN1/2 series CONTACT SKT CRIMP 26-28AWG GOLD CONTACTSFORJN1/2SERIES,26CONTACTS 01P SOCKET CRIMP CONTACT GOLD
JN1AS10ML2-R
JAE Electronics
Standard Circular Connector 10p Panel mnt recep solder BLK CONN RCPT WATERPRF 10POS SLD PIN CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS 10P CIRCULAR PIN AWG22 BLACK AU
JN2AS10ML2-R
JAE Electronics
Standard Circular Connector 10p PCB/Pnl to Cable IP67 Metal CONN RCPT 10POS #22 SOLDER PIN CIRCULARCONNECTOR-METAL-PCB/PANELTOCABLE-IP67,10CONTACTS

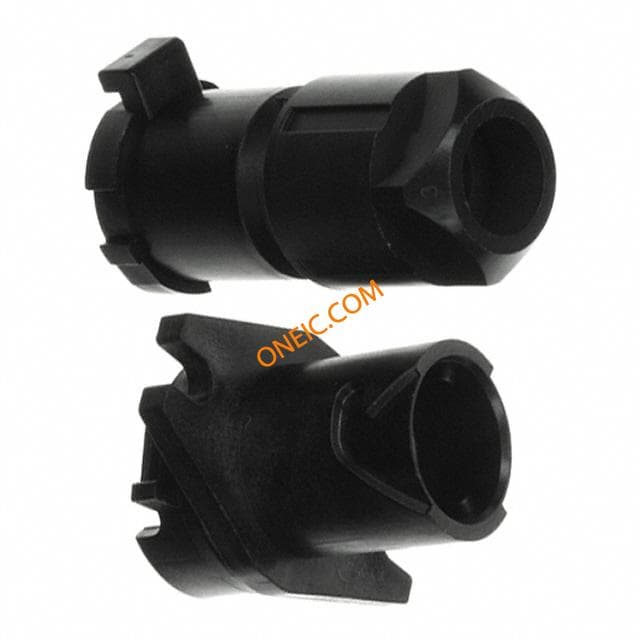

JN1KS10PL1
JAE Electronics
Standard Circular Connector 10P Panel to Cable IP67 CONN RCPT WALL 10POS CRIMP PIN CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS

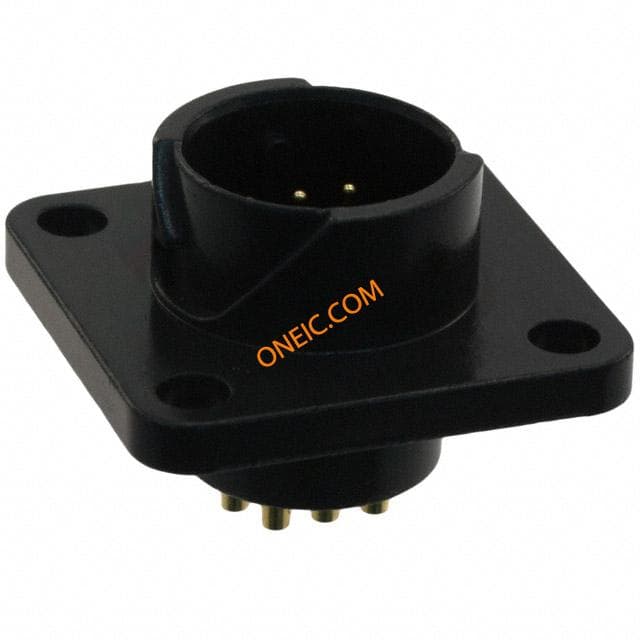

JN2AS10ML1-R
JAE Electronics
Standard Circular Connector 10 POS. GOLD RECPT. PNL/MNT SOLDER/TERM CONN RCPT 10POS PIN W/SOLDER RCPTCIRC10POSPNLMNT
JN1AS10ML1-R
JAE Electronics
Standard Circular Connector 10p Panel mnt recep solder BLK CONN RCPT 10POS W/PIN SLD BLACK RCPTCIRC10POSPNLMNT 10P CIRCULAR PIN AWG22 BLACK
JN1-22-20S-R-PKG100
JAE Electronics
Standard Circular Contacts SOCKET CONTACT Circular CONTACT SKT CRIMP 20-21AWG GOLD SocketContact JN1-22-20S-R-PKG100 JN1/JN2seriescontact,crimpsocketpkof100
JN1HS10PL2
JAE Electronics
Standard Circular Connector 10p PCB/Pnl to Cable IP67 CONN RCPT CABLE 10POS CRIMP PIN CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS 10P CRIMP SMALL FEMALE BLACK

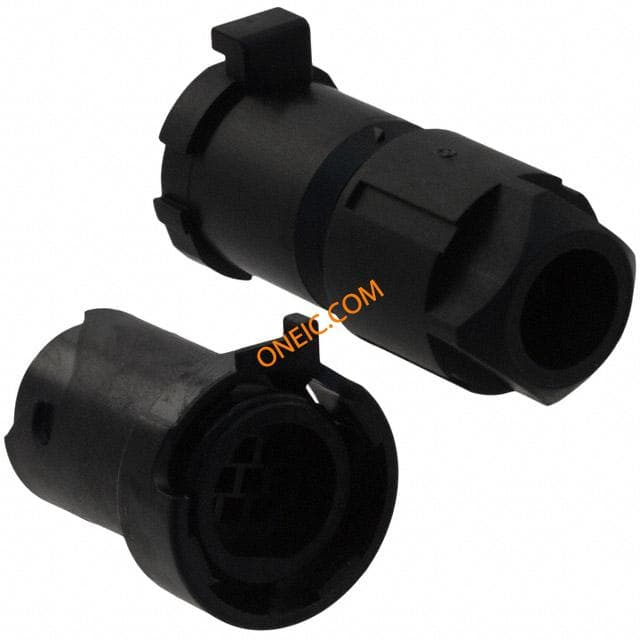

JN1HS10PL1
