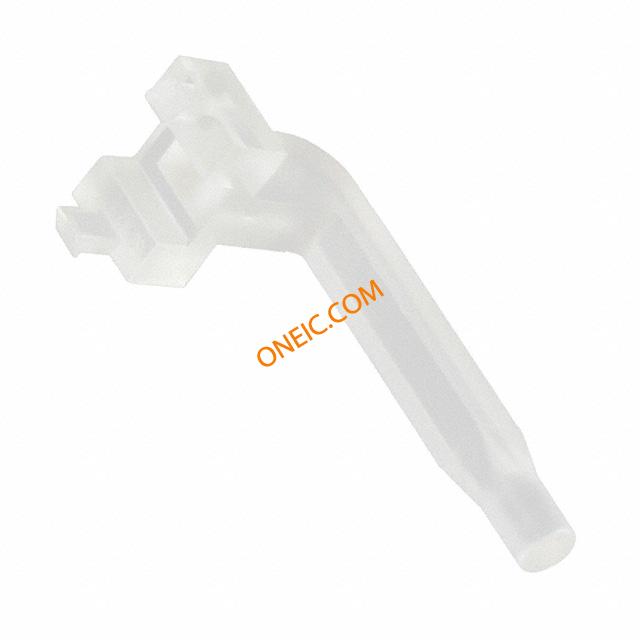

LPF-C011303S
| Manufacturer | |
| Description | LED Light Pipes 2.8mm R/A ROUND CLR LIGHT PIPE RT ANGLE STACKABLE SM Single Unit , Stackable Right Angle Smt Light Pipe LIGHT PIPE, SINGLE, ROUND, PCB |
| Category |
商业参数
| 产品 | Rigid Light Pipes | 商标名 | Transbrite |
| 产品类别 | LED Light Pipes | 标准包装数量 | 1,000 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 90019000 | ||
电气参数
| 光学尺寸 | 1206, 1210 | ||
机械参数
| 颜色 | Clear | 形状 | Round |
| 长度 | :22mm | 重量 | 0.002 |
| 材料（通用） | Polycarbonate (PC) | 包装方式 | Bulk |
| 透镜颜色 | :Transparent | 安装类型 | Board Mount, Press Fit, Right Angle |
| 透镜样式/尺寸 | Round with Flat Top, 2.8mm | 总长度 | 24.9 mm |
| 尺寸/外形 | 2.8 mm | 位数 | :1 |
| 光学边缘厚度 | :Circular | ||
产品信息
| 类型 | Rigid | 配置 | Single |
