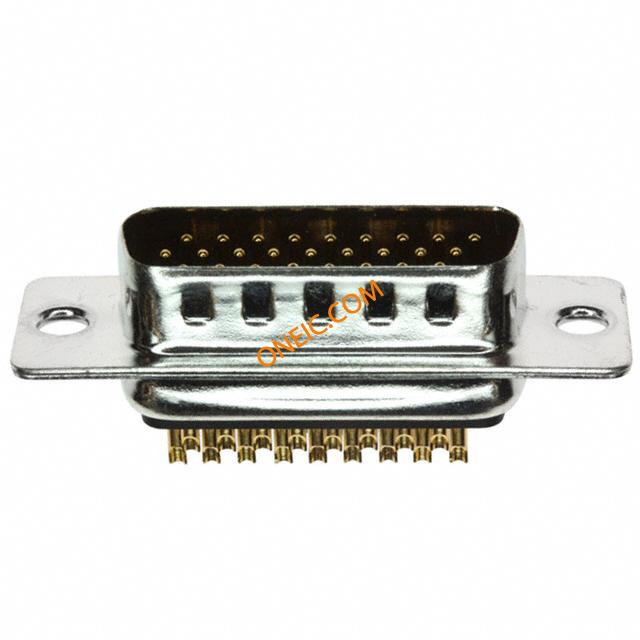

180-M26-103L001
| Manufacturer | |
| Description | D-Sub High Density Connectors 26P HD Male Sol Cup Machined Nickel CONN DB26 MALE HD SLD CUP NICKEL HD DSUB, PLUG, SOLDER CUP, 26WAY |
| Category |
商业参数
| 商标名 | M-SERIES | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | 80 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :NORCOMP - M Series | 最大额定电流 | 5A |
机械参数
| 颜色 | Black | 间距 | 2.29 mm |
| 重量 | 0.0076 | 包装方式 | Tray |
| 外壳尺寸 | :DA | 端接方式 | Solder Cup |
| 触头类型 | Signal | 安装类型 | Vertical |
| 外壳镀层 | Nickel | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Panel | 排数 | 3 |
| 外壳材料（壳体） | Brass | 连接器样式 | D-Sub, High Density |
| 本体材料 | :Steel | 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 端接样式 | Solder | 触点数 | 26 |
| 接触件端接 | :Solder | 位数 | 26 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 2 (DA, A) High Density | ||
产品信息
| 连接器性别 | Male | 系列 | :M-Series |
| 产品特性 | Grounding Indents, Shielded | ||
环境参数
| 插拔次数 | :100 | 工作温度 | -55°C ~ 105°C |
