点击放大查看

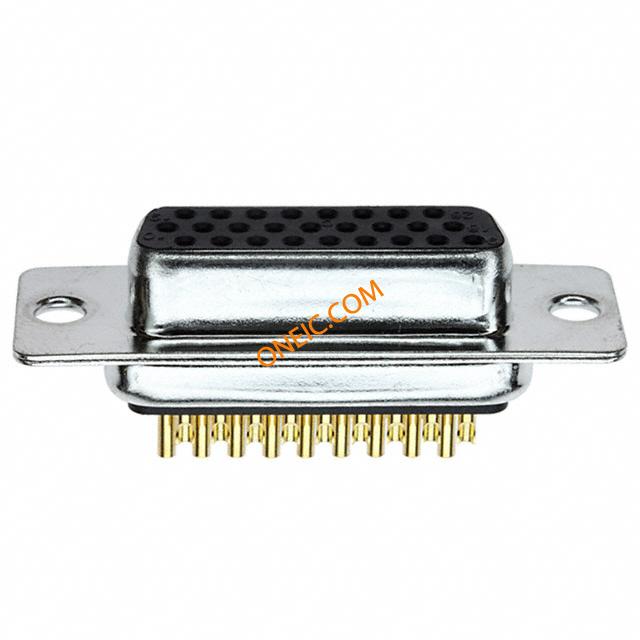

180-M26-203L001

Manufacturer	NorComp Inc.
Description	D-Sub High Density Connectors 26P HD Fem Sol Cup Machined Nickel CONN DB26 FMAL HD SLD CUP NICKEL HD DSUB, SOCKET, SOLDER CUP, 26WAY
Category	连接器解决方案D-Sub连接器D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

商标名	M-SERIES	产品类别	D-Sub High Density Connectors
标准包装数量	80	工厂包装数量	80

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85369010

电气参数

量程（°/s）

:NORCOMP - M Series

最大额定电流

5 A

机械参数

颜色	Black	重量	0.0085
包装方式	Tray	外壳尺寸	:DA
端接方式	Solder Cup	触头类型	Signal
安装类型	Vertical	外壳镀层	Nickel
连接器类型	Receptacle, Female Sockets	接触镀层	Gold
法兰特征	Housing/Shell (Unthreaded)	安装样式	Through Hole
排数	3	外壳材料（壳体）	Steel
连接器样式	D-Sub, High Density	本体材料	:Steel
触头材料	Brass	壳体材料	Polybutylene Terephthalate (PBT), Glass Filled
端接样式	Solder	触点数	26
接触件端接	:Solder	位数	26
外壳材料及表面处理	Steel, Nickel Plated	接触镀层厚度	Flash
外壳尺寸，连接器布局	2 (DA, A) High Density

产品信息

连接器性别	Female	系列	:M-Series
产品特性	Shielded

环境参数

插拔次数

:100

工作温度

-55°C ~ 105°C
