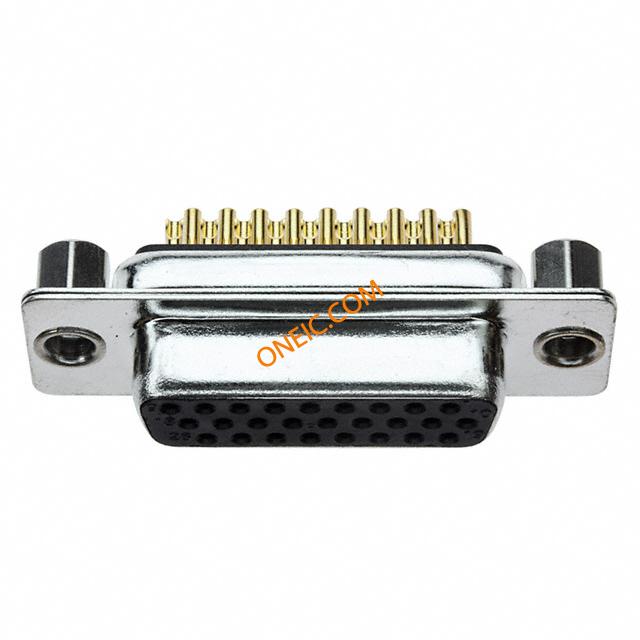

180-M26-203L021
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Other Names | 180-M2621FN |
| Product Category | D-Sub High Density Connectors | Standard Package | 70 |
| Factory Pack Quantity | 70 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | Black | Pitch | 2.29 mm |
| Packaging | Tray | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Vertical |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Board Side (4-40) |
| Mounting Style | Panel | Number of Rows | 3 |
| Shell Material | Brass | Connector Style | D-Sub, High Density |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Termination Style | Solder |
| Number of Contacts | 26 | Number of Positions | 26 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 2 (DA, A) High Density | ||
Product Info
| Gender | Male | Features | Shielded |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
.jpg&w=3840&q=75)
.jpg&w=3840&q=75)
Sourcing & traceability
- Datasheet
- 180-M26-203.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
