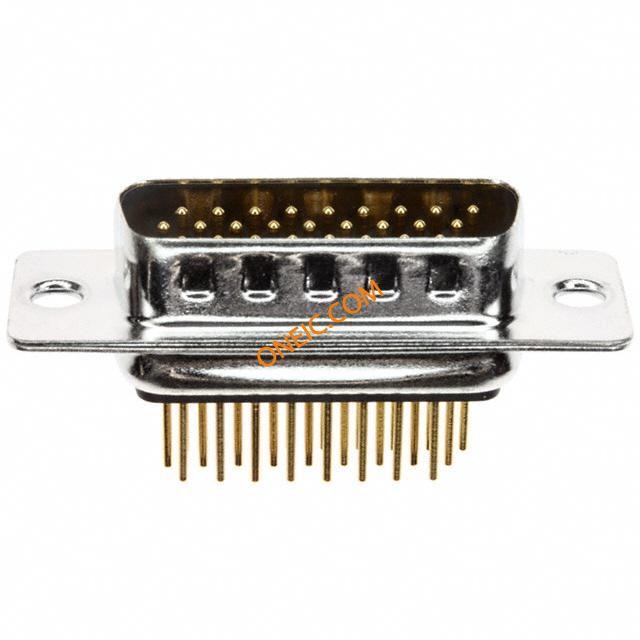

180-M26-113R001
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Product Category | D-Sub High Density Connectors |
| Standard Package | 32 | Factory Pack Quantity | 32 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - M Series | Current Rating (Max) | 5A |
Mechanical
| Color | Black | Pitch | 2.29 mm |
| Weight | 0.0061 | Packaging | Tray |
| Shell Size | :DA | Termination | Solder |
| Contact Type | Signal | Mounting Type | Vertical |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 3 |
| Shell Material | Brass | Connector Style | D-Sub, High Density |
| Material - Body | :Steel | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 26 |
| Contact Termination | :Solder | Number of Positions | 26 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 2 (DA, A) High Density | ||
Product Info
| Gender | Male | Series | :M-Series |
| Features | Grounding Indents, Shielded | ||
Environmental
| Mating Cycles | :100 | Operating Temperature | -55°C ~ 105°C |
Documents & Media
.jpg&w=3840&q=75)
Sourcing & traceability
- Datasheet
- 180-M26-113.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
