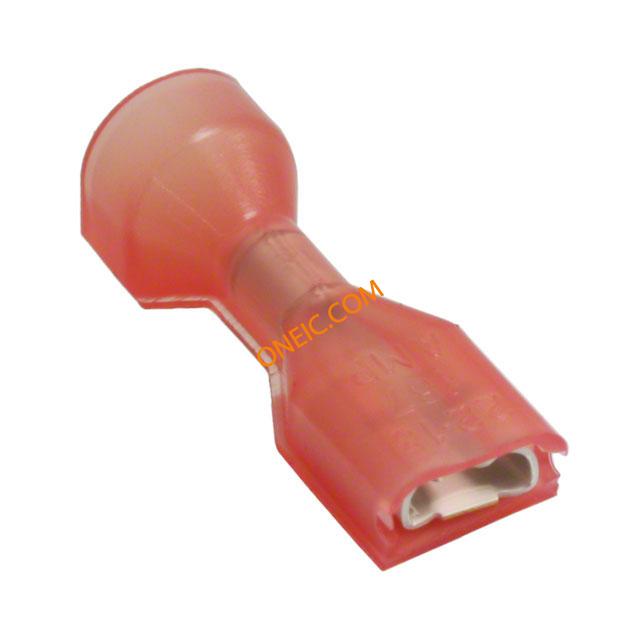

2-520261-2
| Manufacturer | |
| Description | Quick Disconnect Terminal 18-22AWG F 23.74mm 8.53mm Tin Strip on Reel Terminals 187 ULTRA-FAST 22-18 Ultra-Fast Receptacles & Tabs CONN RECEPT FAST 18-22 AWG .187 Receptacle terminal, Ultra-Fast 187, red Quick Disconnect Terminal 18-22AWG F 23.74mm 8.53mm Tin Strip on Reel Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = StraightTab Fit = 4.75 x 0.51 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG TERMINAL, FEMALE DISCONNECT, 0.187IN RED ULTRA-FASTSTRIP,187ULTRAFAST22-18TPBR Ultra Fast 22-18 AWG Straight Fully Insulated Receptacle Assembly TE Connectivity Ultra-Fast .187 系列 红色 绝缘 压接插座 , 4.75 x 0.51mm, 镀锡触芯 ULTRA-FAST 187 ASY REC 22-18 TPBR |
| Category |
商业参数
| 产品 | Faston Terminals | 其他名称 | A27807CT |
| 产品类别 | Terminals | 标准包装数量 | 2,000 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
机械参数
| 颜色 | Red | 表面处理 | Tin |
| 重量 | 0.001 | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.51 [.187 x .020] |
| 绝缘类型 | Insulated | 导线线规 | 22-18 |
| 端接方式 | Crimp | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 0.187 in x 0.02 in | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Standard | 连接器类型 | :Female Disconnect |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 触头材料 | Brass | 绝缘颜色 | :Red |
| 总长度 | 0.935" (23.75mm) | 包装数量 | Strip |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 5.84 [.230] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | Yes | 线规或范围 - AWG | :22AWG |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | ||
产品信息
| 类型 | Receptacle | 连接器性别 | Female |
| 系列 | 187 | 应用 | Standard |
| 产品子类型 | Receptacle | 专有名称 | Ultra-Fast |
