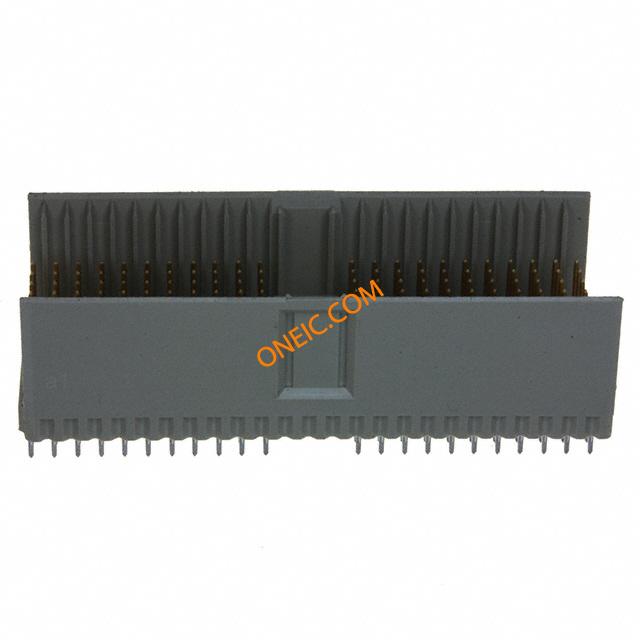

5646346-1
| Manufacturer | |
| Description | Conn Hard Metric PL 176 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 176POS VERT 2MM Z-PACK Hard Metric Header Vertical 176P Hard Metric Connectors HDR D/176P VRT B-PLANE HM Conn Hard Metric PL 176 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type D, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, HEADER, 176POS Connector,2mmHardMetricPCBMount,8R,176P,Plug,TinoverNickel 2MM HM,ASY,T-D,HDR,8R,176P,AP |
| Category |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数
| 间距 | 2 mm | 重量 | 0 |
| 包装方式 | Tube | 屏蔽类型 | No |
| 端接方式 | Press Fit | 触头类型 | Short Tail |
| 极化 | Multi-Purpose Center | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type D, 25 Column |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 8 | 连接器样式 | D 22 |
| 连接器用途 | Backplane | 触头材料 | Phosphor Bronze |
| 前部连接器 | Level 1 | 壳体材料 | Polyester GF |

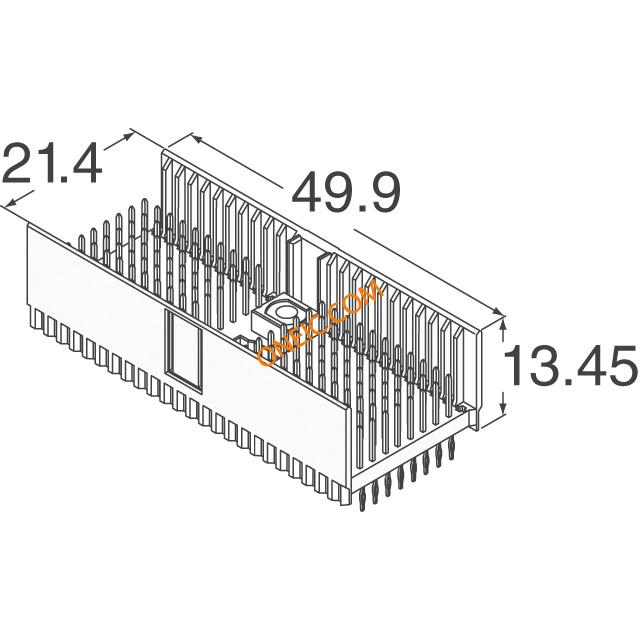

| 总长度 | 50.00 [1.968] | 包装数量 | 11 |
| 配接方向 | With | 触点数 | 176 |
| 端接表面处理 | Tin over Nickel | 接触件端接 | :Through Hole Vertical |
| 位数 | 176 | 柱体长度（配合） | 3.71 [0.146] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Hard Metric | 连接器性别 | Plug |
| 系列 | Z-Pack | 产品特性 | Board Guide |
| 制造商全称 | Tyco Electronics | 产品子类型 | Connector |
| 模块/板类型 | No | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
Documents & Media
相关型号
5646538-1
te connectivity / amp
Conn Hard Metric F 176 POS 2mm Press Fit ST Thru-Hole 2MM H.M. 8 ROW D VERT RECEPTACLE Hard Metric Connectors 2MM H.M. 8 ROW D VERT RECEPTACLE 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = ReceptacleType = Type D, 22 ColumnInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, 2MM H.M. 8 ROW D VERT RECEPTAC

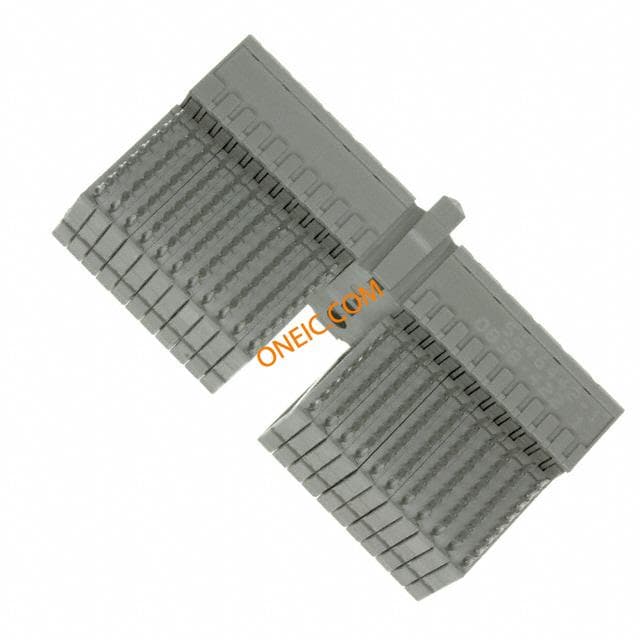

5646442-1
