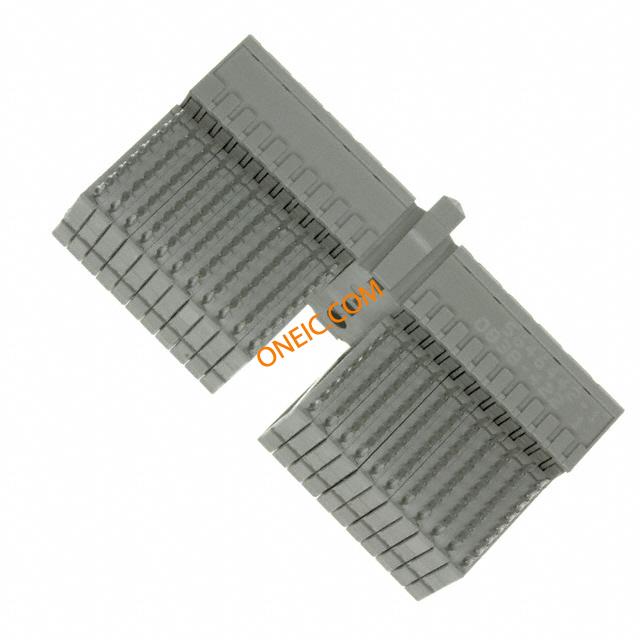

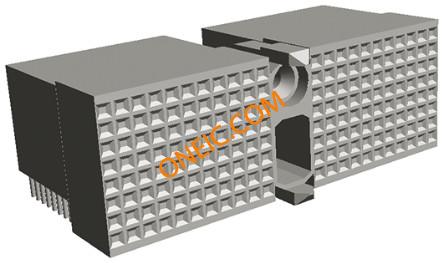

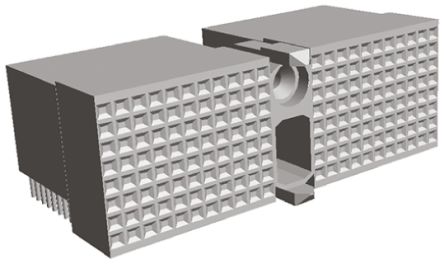

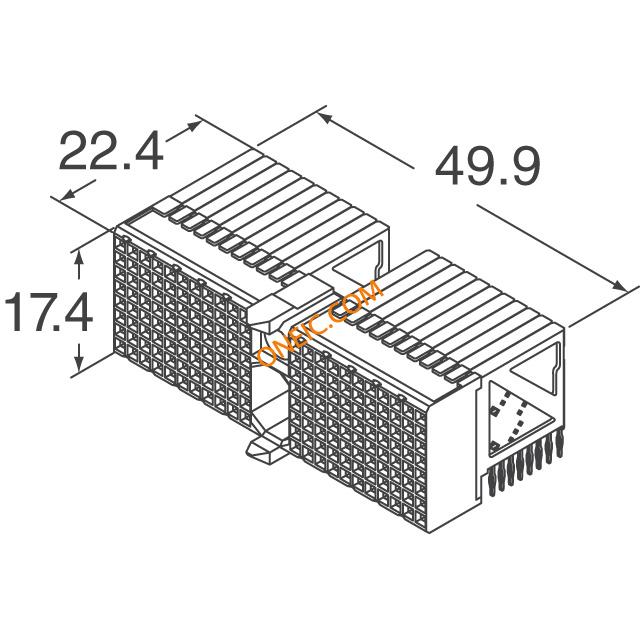

5646442-1
| Manufacturer | |
| Description | Conn Hard Metric RCP 176 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 176POS RT ANG 2MM TE Connectivity Z-PACK HM Series 2mm 176 Way 8 Row Right Angle PCB Socket Through Hole Board to Board Hard Metric Connectors REC D/176P R/A B-PLANE HM Conn Hard Metric RCP 176 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type D, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, 2MMHM,ASY,T-D,REC,TWISTTULIP TE Connectivity Z-PACK HM 系列 2mm 节距 176 路 直角 8 排 母 背板连接器, 焊接端子, 1.5A 5646442 2MM HM,ASY,T-D,REC,TWIST TULIP |
| Category |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 750V | 数据速率（最大） | ≤1 |
| 典型衰减 | 标准 | 最大额定电流 | 1.5A |
机械参数
| 间距 | 2 mm | 长度 | 48 |
| 包装方式 | Tube | 屏蔽 | 否 |
| 壳体颜色 | 灰色 | 方向 | 直角 |
| 屏蔽类型 | No | 端接方式 | Solder |
| 触头类型 | Without | 极化 | Multi-Purpose Center |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Type D, 25 Column | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 8 |
| 连接器样式 | D 22 | 连接器用途 | CompactPCI |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 48.00 [1.891] |
| 包装数量 | 10 | 面板安装类型 | 直角 |
| 端接排数 | 焊接 | 端接样式 | 插座 |
| 配接方向 | With | 触点数 | 176 |
| 端接表面处理 | Tin over Nickel | 位数 | 176 |
| 柱体长度（配合） | 3.30 [0.130] | 典型触点布局 | ACTION PIN, 信号 |
| 接触镀层厚度 | 30µin (0.76µm) | 后壳材料及镀层 | 硬公制 D 型 |
产品信息
| 制造商 | 3.3 | 类型 | Hard Metric |
| 连接器性别 | Receptacle | 系列 | Z-PACK HM |
| 产品特性 | Board Guide | 制造商全称 | Tyco Electronics |
| 产品子类型 | Connector | 模块/板类型 | Yes |
| 列数 | 25 | 基础产品编号 | 5646442 |
| 加载位置数 | All | 转换前位置数 | A, B, C, D, E, F, G, H |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号

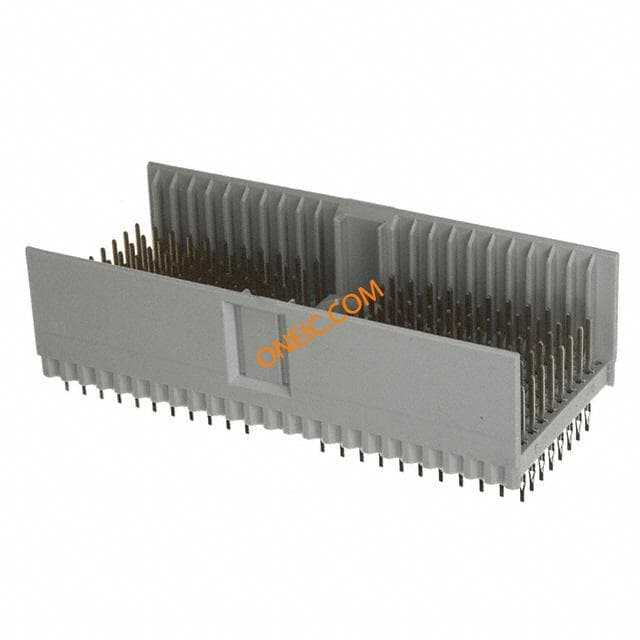

646346-1
