5646538-1
| Manufacturer | |
| Description | Conn Hard Metric F 176 POS 2mm Press Fit ST Thru-Hole 2MM H.M. 8 ROW D VERT RECEPTACLE Hard Metric Connectors 2MM H.M. 8 ROW D VERT RECEPTACLE 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = ReceptacleType = Type D, 22 ColumnInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, 2MM H.M. 8 ROW D VERT RECEPTAC |
| Category |
商业参数
| 标准包装规格 | 10 | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | 2mm HM | 额定电压 | 750V |
| 数据速率（最大） | ≤1 | 典型衰减 | 标准 |
| 最大额定电流 | 1.5A | ||
机械参数
| 间距 | 2 mm | 长度 | 50 |
| 包装方式 | Bulk | 屏蔽 | 否 |
| 壳体颜色 | 灰色 | 端接方式 | Press Fit |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 排数 | 8 |
| 连接器样式 | D 22 | 连接器用途 | Backplane |
| 插入件材料 | 磷青铜 | 壳体材料 | 聚酯 - GF |
| 包装数量 | 10 | 面板安装类型 | 垂直 |
| 端接样式 | 插座 | 触点数 | 176 |
| 位数 | 176 | 典型触点布局 | ACTION PIN, 信号 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 制造商 | 3.34 | 类型 | Hard Metric |
| 产品子类型 | Receptacles | 列数 | 22 |
| 加载位置数 | All | 转换前位置数 | A, B, C, D, E, F, G, H |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
Documents & Media
相关型号
5646489-1
te connectivity / amp
Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 110POS RT ANG 2MM Connector,rcp,TypeA/B,HM,2mm,110W Hard Metric Connectors REC AB110P R/A B-PLANE HM Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type A/BReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR, 2MM, 110WAY TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 母 背板连接器, 焊接端子, 1.5A 2MM H.M. A/B-22 RECEPT. ASSY.

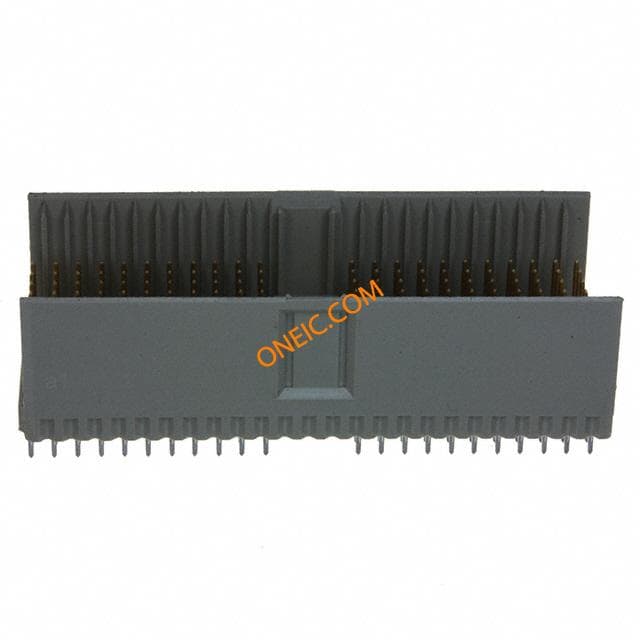

5646346-1
te connectivity / amp
Conn Hard Metric PL 176 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 176POS VERT 2MM Z-PACK Hard Metric Header Vertical 176P Hard Metric Connectors HDR D/176P VRT B-PLANE HM Conn Hard Metric PL 176 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type D, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, HEADER, 176POS Connector,2mmHardMetricPCBMount,8R,176P,Plug,TinoverNickel 2MM HM,ASY,T-D,HDR,8R,176P,AP

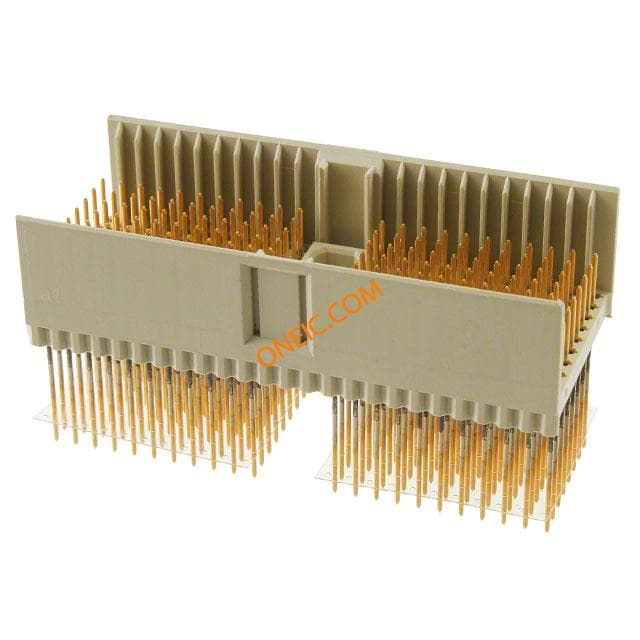

5646372-1
