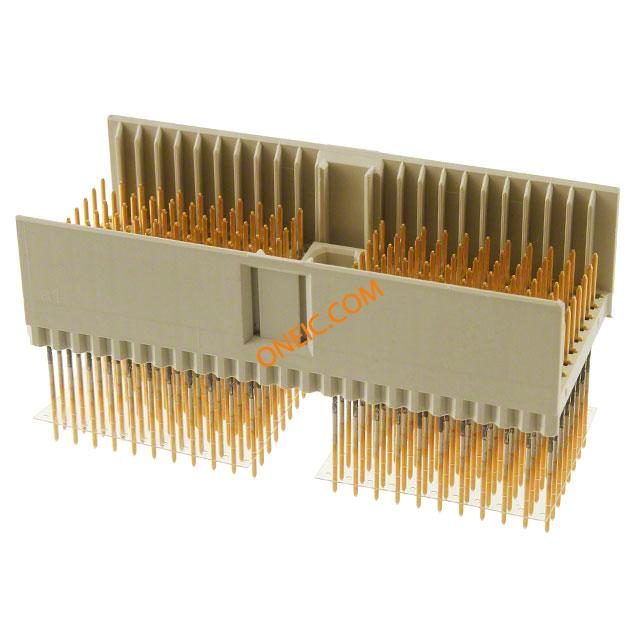

5646372-1
| Manufacturer | |
| Description | Conn Hard Metric M 176 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) 2MM HM,ASY,T-D,HDR,8R,176P,AP Hard Metric Connectors 2MM HM,ASY,T-D,HDR,8R,176P,AP 2MM HM,ASY,T-D,HDR,8R,176P,AP Search Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, |
| Category |
商业参数
| 标准包装规格 | 10 | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Not applicable / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 750V | 数据速率（最大） | ≤1 |
| 典型衰减 | 标准 | 最大额定电流 | 1.5A |
机械参数
| 间距 | 2 mm | 长度 | 50 |
| 包装方式 | Tube | 屏蔽 | 否 |
| 壳体颜色 | 灰色 | 屏蔽类型 | No |
| 端接方式 | Press Fit | 触头类型 | Feed through |
| 极化 | Multi-Purpose Center | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type D, 25 Column |
| 接触镀层 | Gold Over Nickel | 排数 | 8 |
| 连接器样式 | D 22 | 连接器用途 | Backplane |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 前部连接器 | Level 1 | 壳体材料 | Polyester GF |
| 总长度 | 50.00 [1.968] | 包装数量 | 11 |
| 面板安装类型 | 垂直 | 端接样式 | 插针 |
| 配接方向 | With | 触点数 | 176 |
| 端接表面处理 | Tin over Nickel | 位数 | 176 |
| 柱体长度（配合） | 13.00 [0.512] | 接触件表面处理 - 配合 | 第 1 级 |
| 典型触点布局 | ACTION PIN, 信号 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 制造商 | 5.25 | 类型 | Hard Metric |
| 连接器性别 | Plug | 产品特性 | Alignment Strip, Board Guide |
| 卡类型 | 无 | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | No |
| 列数 | 25 | 加载位置数 | All |
| 转换前位置数 | A, B, C, D, E, F, G, H | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号
