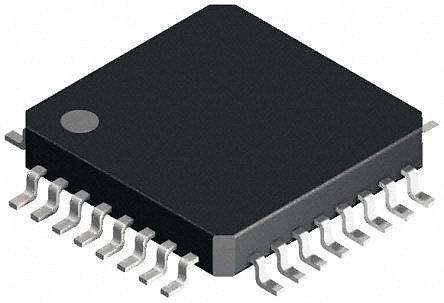

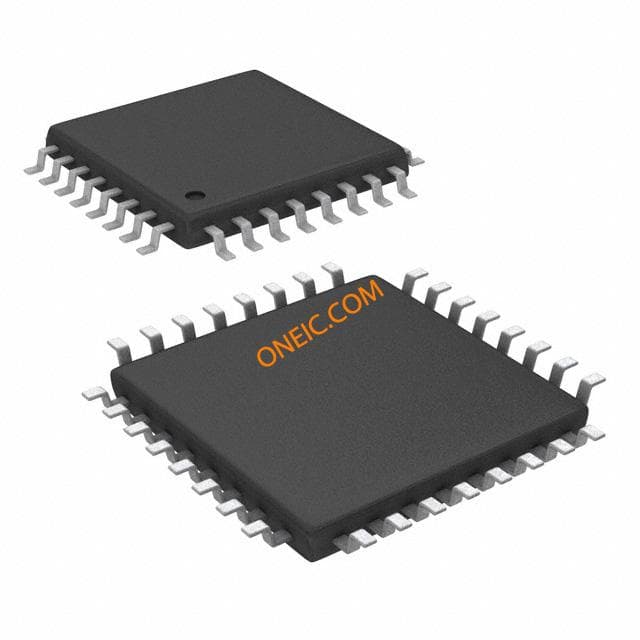

TVP5150AM1IPBS
| Manufacturer | |
| Description | Video Decoder 1ADC 9-Bit 32-Pin TQFP Tray IC VIDEO DECODER 8BIT 32TQFP Video ICs Ultralow Pwr NTSC PAL/SECAM Vid Dec VIDEO DECODER, 9BIT, 30MSPS, TQFP-32 IC, VIDEO DECODER, 9BIT, 30MSPS, TQFP-32 9bit NTSC/PAL/SECAM 视频解码器集成电路, 1.65 → 1.95 V, 32针 TQFP封装 |
| Category |
Business
| Product Category | Video ICs | Standard Package | Trays |
| Factory Pack Quantity | 250 | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Output | ITU-R BT.601/656 | Input Type | NTSC|PAL|SECAM |
| Output Type | :Digital | Voltage Rating | 1.8 V |
| Ratio - S/H:ADC | :30MSPS | Current - Output | 5.4|24.4|25.3 mA |
| Number of Inputs | :2 | Voltage - Supply | 3.3 V |
| Power Supply Type | Analog|Digital | Resolution (Bits) | 9 Bit |
| Number of ADCs / DACs | 1 | Voltage - Supply (Min) | 1.95 |
| Voltage - Supply, Analog | 1.8V | Voltage - Supply, Digital | 1.8V, 3.3V |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 5 | Weight | 0.002568 oz |
| Packaging | Tray | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :32 | Package / Case | 32TQFP |
| Package Cooled | TQFP | Material Finish | :MSL 2 - 1 year |
| Length - Overall | 5 | Package Quantity | TQFP |
| Number of Positions | 32 | Shell Size - Insert | 1 |
| Supplier Device Package | 32-TQFP (5x5) | ||
Product Info
| Type | Decoder | Format | :Analogue |
| Series | TVP5150AM1 | Tip Style | :TQFP |
| Applications | Cell Phones, PDA, Players | RF Family/Standard | TVP5150AM1 |
| Printed Circuit Board | 32 | ||
Environmental
| Operating Temperature | -40 °C | ||
