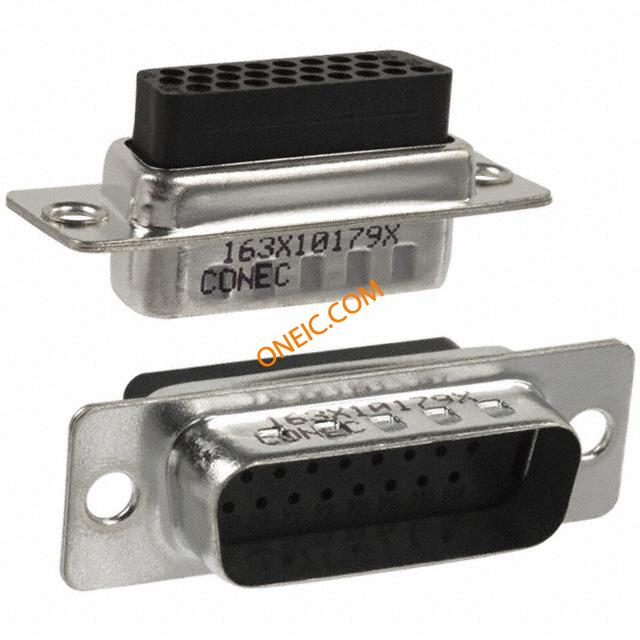

163X10179X
| Manufacturer | |
| Description | D-Sub High Density Connectors 26 POS HD CRIMP MALE THROUGH HOLE Conn Housing PL 26 POS Crimp ST Panel Mount CONN DSUB HD 26POS PLUG CRIMP |
| Category |
商业参数
| 其他名称 | 626-1078 | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Black | 高度 | 12.93 |
| 包装方式 | Tray | 导线线规 | 22 |
| 触头类型 | Signal | 安装类型 | Straight |
| 外壳镀层 | Tin | 连接器类型 | Plug for Male Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 3 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub, High Density | 壳体材料 | Steel |
| 总长度 | 39.52 | 端接样式 | Crimp |
| 触点数 | 26 | 介电材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 位数 | 26 | 外壳镀层厚度 | 320µin (8.13µm) |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 2 (DA, A) High Density |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | Male | 产品特性 | Grounding Indents |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
Documents & Media
相关型号
165X10919XE
CONEC
D-Sub Backshells MTLZD PLASTIC HOOD 15 POS Connector Accessories D-SUB Plastic Hood 15 POS Acrylonitrile Butadiene Styrene With Straight Cable Exit With Jack Screw CONN BACKSHELL DB15 STR METALIZD
161A18009X
CONEC
D-Sub Contacts HD CRIMP CONTACT MALE 22 AWG DSUB HD PIN 22AWG GOLD
165X10149XE
CONEC
D-Sub Backshells PLASTIC HOOD 15 POS BLACK Connector Accessories D-SUB Plastic Hood 15 POS Polyamide Black Straight Cable Exit, Jack Screw Single Packed Version CONN BACKSHELL DB15 STR BLACK Connector Accessories D-SUB Plastic Hood 15 POS Polyamide Black Straight Cable Exit, Jack Screw Single Packed
165X11289XE
CONEC
D-Sub Backshells PLASTIC HOOD 15 POS DUAL ENTRY SLIDELOCK Connector Accessories D-SUB Plastic Hood 15 POS Acrylonitrile Butadiene Styrene Black With Top And Side Cable Exit With Slide Lock CONN BACKSHELL DB15 DL W/SIDELOC
164A17069X
CONEC
D-Sub High Density Connectors 26 POS HD SOLDER CUP AWG 22 FEMALE THREAD Conn High Density D-Sub SKT 26 POS Solder Cup ST Panel Mount 26 Terminal 1 Port CONN DSUB HD 26POS RCPT SOLDER
164X11959X
CONEC
D-Sub High Density Connectors 26 POS HD CRIMP FEMALE THROUGH HOLE Conn Housing SKT 26 POS Crimp ST Panel Mount CONN DSUB HD 26POS RECEPT CRIMP
165X14829XE
CONEC
D-Sub Backshells HOOD 15 POS Connector Accessories Water Resistant D-SUB Hood Polybutylene Terephthalate Black With Jack Screw CONN HOOD DSUB 15POS IP67 BLACK
165X11329XE
CONEC
D-Sub Backshells MTLZD PLASTIC HOOD 15P W/JACK SCREW Connector Accessories D-SUB Plastic Hood 15 POS Acrylonitrile Butadiene Styrene With Top And Side Cable Exit With Jack Screw CONN BACKSHELL DB15 DL METALIZED
165X11249XE
CONEC
D-Sub Backshells PLASTIC HOOD 15 POS BLK DUAL ENTRY Connector Accessories D-SUB Plastic Hood 15 POS Acrylonitrile Butadiene Styrene Black With Top And Side Cable Exit With Jack Screw CONN BACKSHELL DB15 DL EXIT BLK

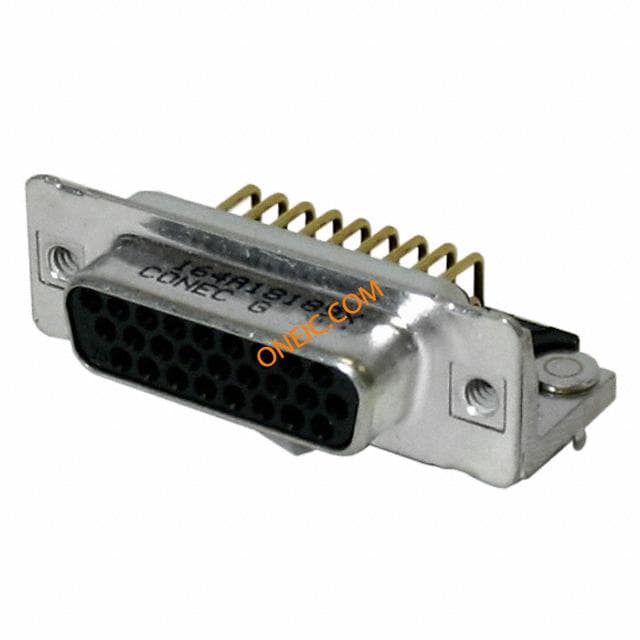

164A18189X
