点击放大查看

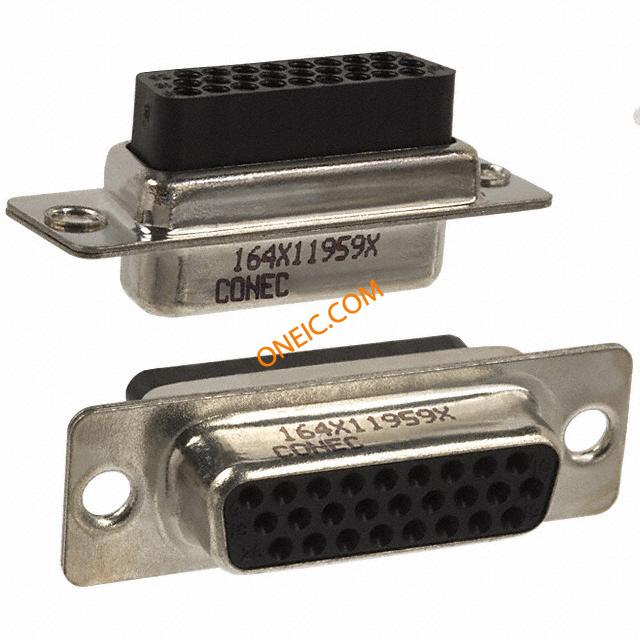

164X11959X
| Manufacturer | |
| Description | D-Sub High Density Connectors 26 POS HD CRIMP FEMALE THROUGH HOLE Conn Housing SKT 26 POS Crimp ST Panel Mount CONN DSUB HD 26POS RECEPT CRIMP |
| Category |
商业参数
| 其他名称 | 626-1081 | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Black | 高度 | 12.93 |
| 包装方式 | Tray | 导线线规 | 22 |
| 触点形式 | Signal | 触头类型 | Signal |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, High Density |
| 壳体材料 | Steel | 总长度 | 39.52 |
| 端接样式 | Crimp | 触点数 | 26 |
| 介电材料 | Polybutylene Terephthalate (PBT), Glass Filled | 位数 | 26 |
| 外壳镀层厚度 | 320µin (8.13µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 2 (DA, A) High Density | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | Female | 系列 | 164X |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
