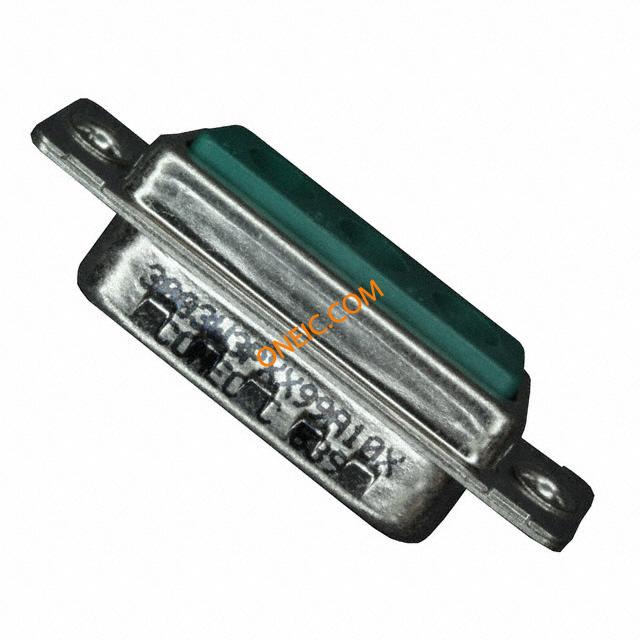

3003W3PXX99A10X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 3W3 MALE Conn Housing M 3Power POS Crimp ST Panel Mount CONN DSUB COMBO 3POS 3W3 PLUG Plug; Special D-Sub; PIN:3(3+0); male; w/o special terminals
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1102	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压值

250V

连接器类型 - 电压输入

w/o special terminals

机械参数

颜色	Green	深度	12.37
高度	12.93	重量	7.01 g
包装方式	Tray	外壳尺寸	3
触头类型	Coax or Power	安装类型	Straight
外壳镀层	Tin	连接器类型	Plug for Male Contacts
法兰特征	Housing/Shell (Unthreaded)	安装样式	Panel
排数	2	外壳材料（壳体）	Steel
连接器样式	D-Sub, Combo	壳体材料	Steel
总长度	39.52	包装数量	1
尺寸/外形	see	连接器 - 电缆	plug
端接样式	Crimp	触点数	3Power
介电材料	Polybutylene Terephthalate (PBT), Glass Filled	位数	3 (Coax or Power)
外壳材料及表面处理	Steel, Tin Plated	典型触点布局	3W3P
小外径	33.3mm	外壳尺寸，连接器布局	2 (DA, A) - 3W3
第一连接器安装特征	3/3

产品信息

SPG	1	备注	Contacts Not Provided
类型	Housing	连接器性别	Male
系列	300	产品特性	Grounding Indents
原理图	see	单元数量	1

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K2II9A.pdf

PDF Document

3003W3PXX99A10X Drawing

PDF Document

Comb D-SUB Connectors

PDF Document

Combination D-SUB Catalog

PDF Document

Comb D-SUB without Contacts

PDF Document

Comb D-SUB Conn Tech Data
