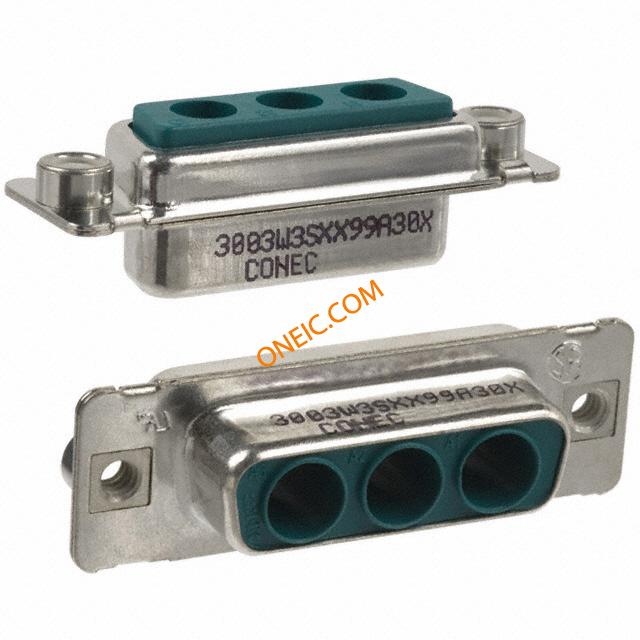

3003W3SXX99A30X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 3W3 FEMALE CONN DSUB COMBO 3POS 3W3 SOCKET
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1103	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS

RoHS Compliant

机械参数

颜色	Green	包装方式	Tray
外壳尺寸	3	触头类型	Coax or Power
安装类型	Straight	外壳镀层	Tin
连接器类型	Receptacle for Female Contacts	法兰特征	Board Side (4-40)
安装样式	Panel	排数	2
外壳材料（壳体）	Steel	连接器样式	D-Sub, Combo
端接样式	Crimp	介电材料	Polybutylene Terephthalate (PBT), Glass Filled
位数	3 (Coax or Power)	外壳镀层厚度	315µin (8.00µm)
外壳材料及表面处理	Steel, Tin Plated	典型触点布局	3W3S
外壳尺寸，连接器布局	2 (DA, A) - 3W3

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	300

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1A348A.pdf

PDF Document

3003W3SXX99A30X Drawing

PDF Document

Comb D-SUB Conn Tech Data

PDF Document

Comb D-SUB Connectors

PDF Document

Combination D-SUB Catalog
