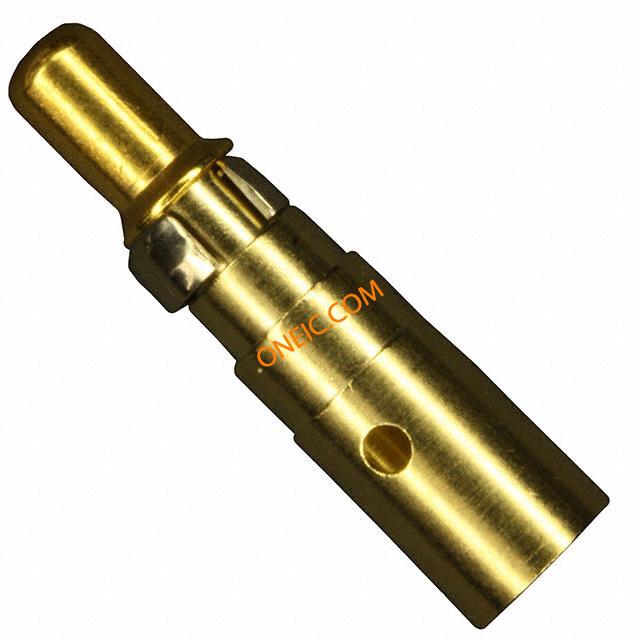

131C11049X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Contacts HIGH POWER CONTACT 40A CRIMP MALE CONN PIN COMBO-D 8-10AWG CRIMP
Category	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1151	产品类别	D-Sub Contacts
标准包装数量	100

合规参数

RoHS

RoHS Compliant

电气参数

最大额定电流

40 A

连接器类型 - 电压输入

Crimp

机械参数

包装方式	Bulk	导线线规	10-8
触点形式	Machined	触头类型	Machined Contacts
触点形状	Machined	接触镀层	Gold
触头材料	Copper Alloy	端接样式	Crimp
第一触头极性	Pin (Male)	端接表面处理	Gold
接触件端接	Crimp	接触镀层厚度	30µin (0.76µm)
端接镀层厚度	Flash

产品信息

类型

Power

系列

131C

Documents & Media

PDF Document

13K1ID4A.pdf

PDF Document

131C11049X Drawing
