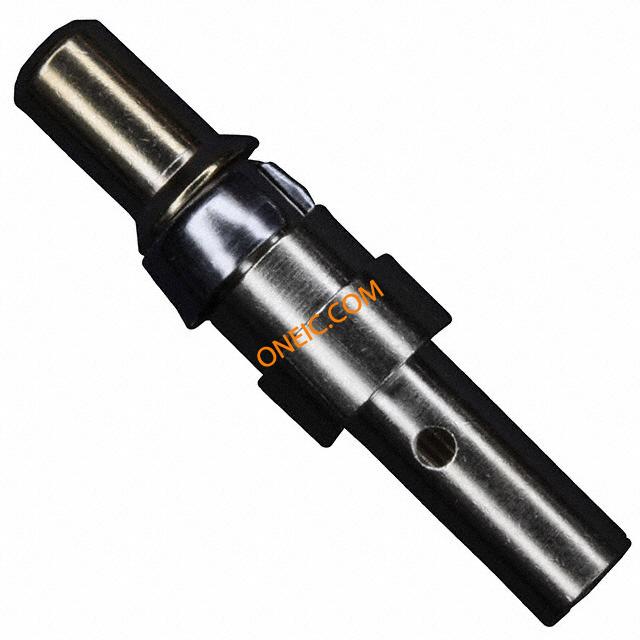

131C11029X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Contacts HIGH POWER CONTACT 20A CRIMP MALE Contact PIN Crimp ST Cable Mount CONN PIN COMBO-D 12-14AWG CRIMP
Category	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1149	产品类别	D-Sub Contacts
标准包装数量	100

合规参数

RoHS	RoHS Compliant	欧盟RoHS	Compliant
抗辐射加固	No

电气参数

最大额定电流

20 A

连接器类型 - 电压输入

Crimp

机械参数

深度	5.5	间距	Not Required mm
高度	5.5	包装方式	Bulk
导线线规	14-12	屏蔽类型	No
端接方式	Crimp	触点形式	Machined
触头类型	Machined Contacts	触点形状	Machined
安装类型	Cable Mount	连接器类型	Connector D-Subminiature
接触镀层	Gold	触头材料	Copper Alloy
壳体材料	Not Required	总长度	22.84 mm
端接样式	Crimp	第一触头极性	Pin (Male)
触点数	Not Required	端接表面处理	Gold
接触件端接	Crimp	接触镀层厚度	30µin (0.76µm)
端接镀层厚度	Flash

产品信息

类型	Power	连接器性别	PIN
系列	131C	端口数	1 Port

环境参数

工作温度

155

Documents & Media

PDF Document

13K1ID2A.pdf

PDF Document

131C11029X Drawing
