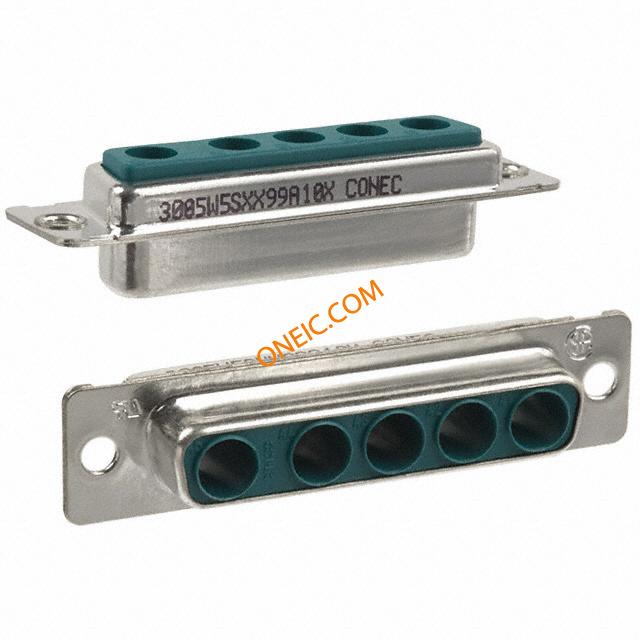

3005W5SXX99A10X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 5W5 FEMALE CONN DSUB COMBO 5POS 5W5 SOCKET Plug; Special D-Sub; PIN:5(5+0); female; w/o special terminals
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1105	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS

RoHS Compliant

电气参数

额定电压值

250V

连接器类型 - 电压输入

w/o special terminals

机械参数

颜色	Green	重量	0.01 kg
包装方式	Tray	外壳尺寸	2
触头类型	Coax or Power	安装类型	Straight
外壳镀层	Tin	连接器类型	Receptacle for Female Contacts
法兰特征	Housing/Shell (Unthreaded)	安装样式	Panel
排数	2	外壳材料（壳体）	Steel
连接器样式	D-Sub, Combo	包装数量	1
尺寸/外形	see	连接器 - 电缆	plug
端接样式	Crimp	介电材料	Polybutylene Terephthalate (PBT), Glass Filled
位数	5 (Coax or Power)	外壳材料及表面处理	Steel, Tin Plated
典型触点布局	5W5S	小外径	47.04mm
外壳尺寸，连接器布局	3 (DB, B) - 5W5	第一连接器安装特征	5/5

产品信息

SPG	1	备注	Contacts Not Provided
连接器性别	Female	系列	300
原理图	see	单元数量	1

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1IK5A.pdf

PDF Document

Comb D-SUB Conn Tech Data

PDF Document

3005W5SXX99A10X Drawing

PDF Document

Comb D-SUB Connectors

PDF Document

Combination D-SUB Catalog
