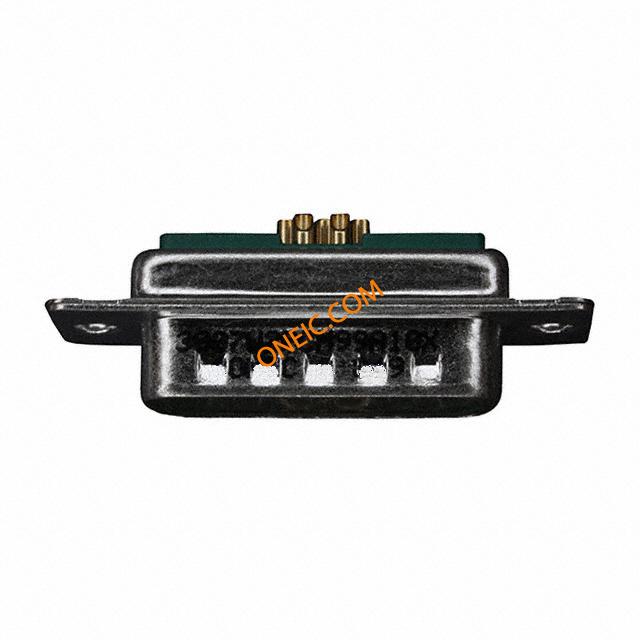

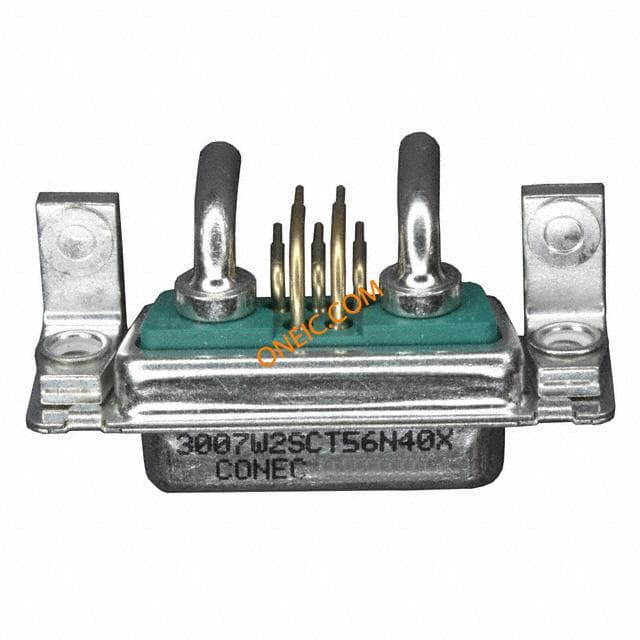

3007W2PCM99A10X
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 7W2 SOLDER CUP MALE Conn D-Subminiature M 5Signal/2Cavity POS Solder Cup ST Panel Mount 7 Terminal 1 Port CONN DSUB COMBO 7POS 7W2 PLUG |
| Category |
商业参数
| 其他名称 | 626-1114 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 250V | 最大额定电流 | 5A |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Green | 深度 | 14.52 |
| 高度 | 12.93 | 包装方式 | Tray |
| 外壳尺寸 | 2 | 端接方式 | Solder Cup |
| 触头类型 | Coax or Power (Not Included) and Signal | 安装类型 | Straight |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, Combo |
| 触头材料 | Copper Alloy | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 39.52 | 端接样式 | Solder |
| 第一触头极性 | M | 触点数 | 5Signal/2Cavity |
| 位数 | 7 (5 + 2 Coax or Power) | 外壳材料及表面处理 | Steel, Tin Plated |
| 典型触点布局 | 7W2P | 接触镀层厚度 | 30µin (0.76µm) |
| 外壳尺寸，连接器布局 | 2 (DA, A) - 7W2 | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | Male |
| 系列 | 300 | 端口数 | 1 |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
