点击放大查看

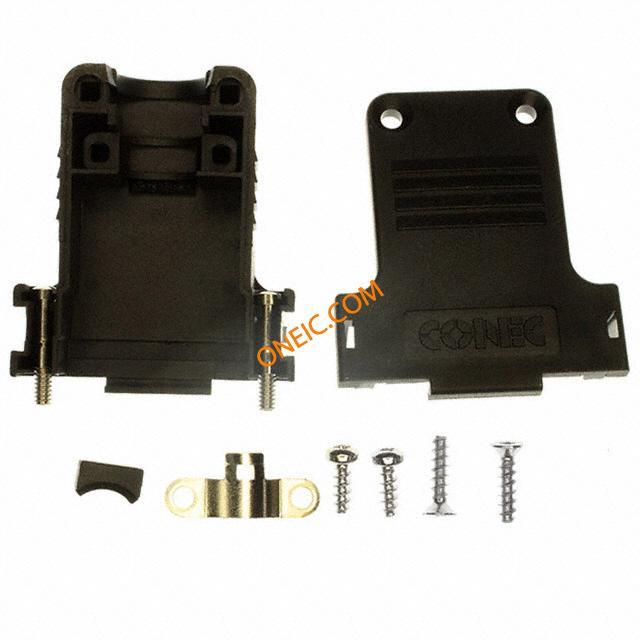

165X13379XE
| Manufacturer | |
| Description | D-Sub Backshells BLK SHELL SIZE 2 STR FOR COMBO Connector Accessories D-SUB Plastic Hood 15 POS Polybutylene Terephthalate Black With Straight Cable Exit Big Space Inside CONN BACKSHELL DB15 STR BLACK Connector Accessories D-SUB Plastic Hood 15 POS Polybutylene Terephthalate Black With Straight Cable Exit Big |
| Category |
商业参数
| 其他名称 | 626-1196 | 产品类别 | D-Sub Backshells |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
机械参数

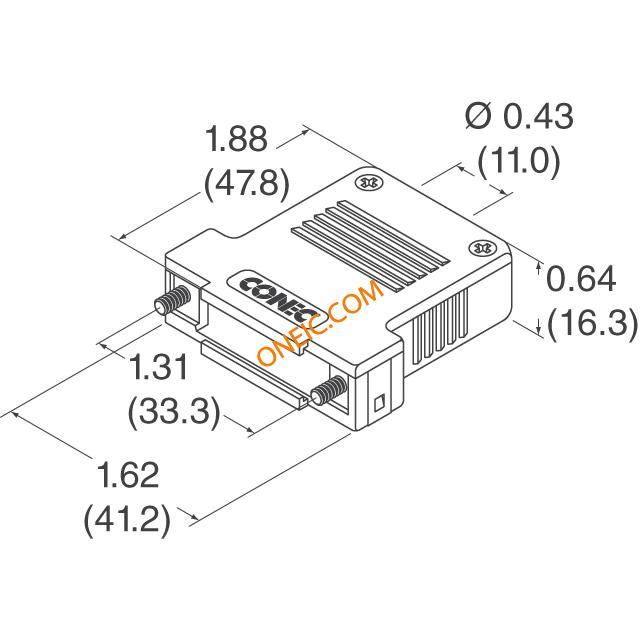

| 颜色 | Black | 深度 | 47.8 mm |
| 高度 | 16.3 mm | 材料（通用） | Polybutylene Terephthalate |
| 屏蔽 | Unshielded | 出线方向 | 180° |
| 电缆类型 | Round | 电缆开口 | 180° |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 电缆直径 | 11 mm | 电缆端类型 | Straight |
| 外壳材料（壳体） | Polyester | 总长度 | 41.2 mm |
| 位数 | 15 | 电缆对数 | 1 |
| 供应商器件封装 | Assembly Hardware, Strain Relief | ||
产品信息
| 类型 | Strain Relief Backshell | 系列 | 165X |
| 产品特性 | Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Strain Relief |
| 主要用途 | Mating Screws 4-40 | 附件类型 | Two Piece Backshell |
环境参数
| 工作温度 | -33C to 90C | ||
