点击放大查看

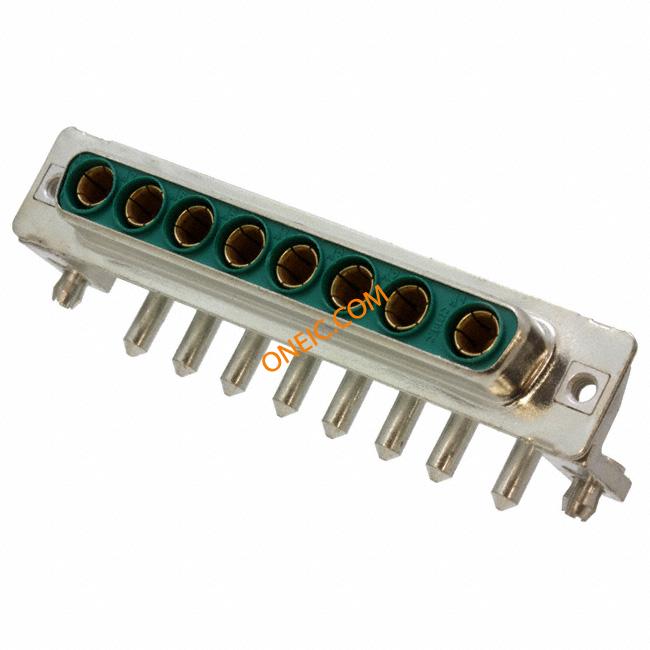

3008W8SXX56N40X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 8W8 FEMALE R/A 20 AMP Conn D-Subminiature SKT 8 POS Solder RA Thru-Hole 8 Terminal 1 Port CONN DSUB COMBO 8POS 8W8 SKT R/A
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1112	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压

250V

最大额定电流

20A

机械参数

颜色	Green	高度	12.93
包装方式	Tray	外壳尺寸	4
端接方式	Solder	触头类型	Power
安装类型	Straight	外壳镀层	Tin
连接器类型	Receptacle, Female Sockets	接触镀层	Gold Over Nickel
法兰特征	Housing/Shell (4-40)	安装样式	Panel
排数	2	外壳材料（壳体）	Steel
连接器样式	D-Sub, Combo	触头材料	Copper Alloy
壳体材料	Polybutylene Terephthalate	总长度	69.7
第一触头极性	SKT	触点数	8
位数	8 (Power)	外壳材料及表面处理	Steel, Tin Plated
典型触点布局	8W8S	接触镀层厚度	30µin (0.76µm)
外壳尺寸，连接器布局	4 (DC, C) - 8W8

产品信息

类型	D-Subminiature	连接器性别	Female
系列	300	产品特性	Board Lock
端口数	1

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1A971.pdf

PDF Document

Comb D-SUB Conn Tech Data

PDF Document

Comb D-SUB Connectors

PDF Document

3008W8SXX56N40X Drawing

PDF Document

Combination D-SUB Spec
