点击放大查看

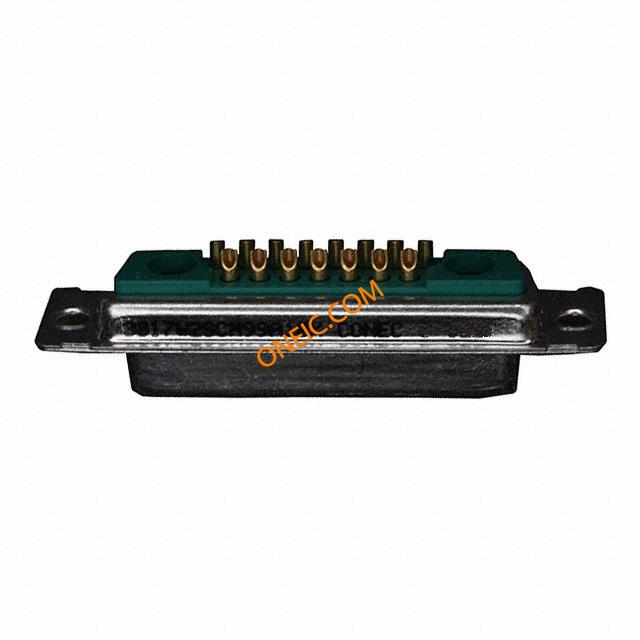

3017W2SCM99A10X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 17W2 SOLDER CUP FEMALE CONN DSUB COMBO 17POS 17W2 SOCKT Plug; Special D-Sub; PIN:17(2+15); female; w/o special terminals
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1121	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	30

合规参数

RoHS

RoHS Compliant

电气参数

额定电压	250V	额定电压值	250V
最大额定电流	5A	连接器类型 - 电压输入	w/o special terminals

机械参数

颜色	Green	重量	0.01 kg
包装方式	Tray	外壳尺寸	2
端接方式	Solder Cup	触头类型	Coax or Power (Not Included) and Signal
安装类型	Straight	外壳镀层	Tin
连接器类型	Receptacle, Female Sockets	接触镀层	Gold
法兰特征	Housing/Shell (Unthreaded)	安装样式	Panel
排数	2	外壳材料（壳体）	Steel
连接器样式	D-Sub, Combo	触头材料	Copper Alloy
壳体材料	Polybutylene Terephthalate (PBT), Glass Filled	包装数量	1
尺寸/外形	see	连接器 - 电缆	plug
端接样式	Solder	位数	17 (15 + 2 Coax or Power)
外壳材料及表面处理	Steel, Tin Plated	典型触点布局	17W2
接触镀层厚度	30µin (0.76µm)	小外径	47.04mm
外壳尺寸，连接器布局	3 (DB, B) - 17W2	第一连接器安装特征	17/2

产品信息

SPG	1	连接器性别	Female
系列	300	原理图	see
单元数量	1

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1A664.pdf

PDF Document

Comb D-SUB Conn Tech Data

PDF Document

3017W2SCM99A10X Drawing

PDF Document

Combination D-SUB Spec
