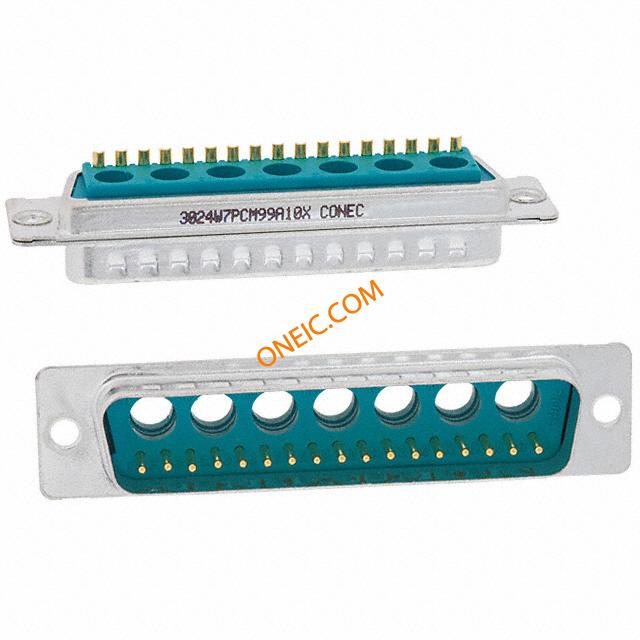

3024W7PCM99A10X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 24W7 SOLDER CUP MALE Conn D-Subminiature M 17Signal/7Cavity POS Solder Cup ST Panel Mount 17 Terminal 1 Port CONN DSUB COMBO 24POS 24W7 PLUG
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1138	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	50

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压

250V

最大额定电流

机械参数

颜色	Green	深度	14.39
高度	15.75	包装方式	Tray
外壳尺寸	5	端接方式	Solder Cup
触头类型	Coax or Power (Not Included) and Signal	安装类型	Straight
外壳镀层	Tin	连接器类型	Plug, Male Pins
接触镀层	Gold Over Nickel	法兰特征	Housing/Shell (Unthreaded)
安装样式	Panel	排数	2
外壳材料（壳体）	Steel	连接器样式	D-Sub, Combo
触头材料	Copper Alloy	壳体材料	Polybutylene Terephthalate
总长度	67.31	端接样式	Solder
第一触头极性	M	触点数	17Signal/7Cavity
位数	24 (17 + 7 Coax or Power)	外壳材料及表面处理	Steel, Tin Plated
典型触点布局	24W7	接触镀层厚度	30µin (0.76µm)
外壳尺寸，连接器布局	5 (DD, D) - 24W7

产品信息

类型	D-Subminiature	连接器性别	Male
系列	300	端口数	1

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1A262A.pdf

PDF Document

3024W7PCM99A10X Drawing

PDF Document

Combination D-SUB Spec
