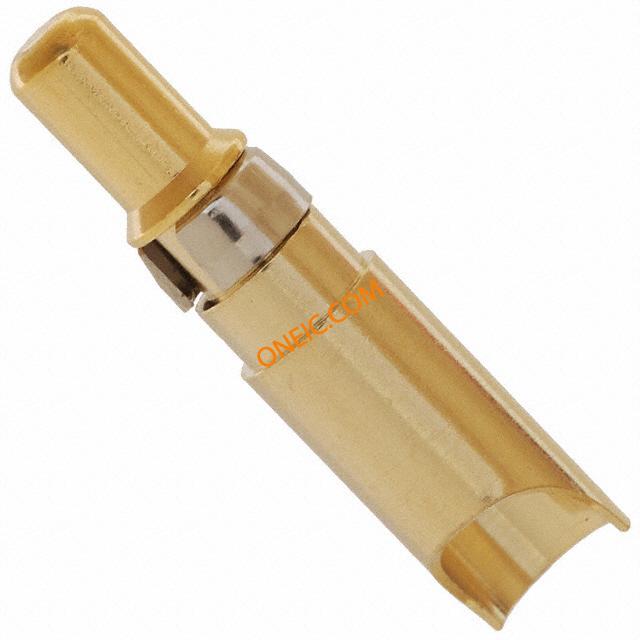

131C10049X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Contacts HIGH POWER CONTACT 40A SOLDER CUP MALE Contact PIN Solder Cup ST Cable Mount CONN PIN COMBO-D 8-10AWG SOLDER
Category	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1143	产品类别	D-Sub Contacts
标准包装数量	100

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流

40 A

机械参数

深度	5.5	高度	5.5
包装方式	Bulk	导线线规	10-8
屏蔽类型	No	端接方式	Solder Cup
触点形式	Machined	触头类型	Machined Contacts
安装类型	Cable Mount	连接器类型	Connector D-Subminiature
接触镀层	Gold	触头材料	Copper Alloy
总长度	22.84	端接样式	Solder
第一触头极性	Pin (Male)	端接表面处理	Gold
接触件端接	Solder Cup	接触镀层厚度	30µin (0.76µm)
端接镀层厚度	8µin (0.20µm)

产品信息

类型	Power	连接器性别	PIN
系列	131C

Documents & Media

PDF Document

13K1ID0A.pdf

PDF Document

131(C,J)10049X Drawing

相关型号

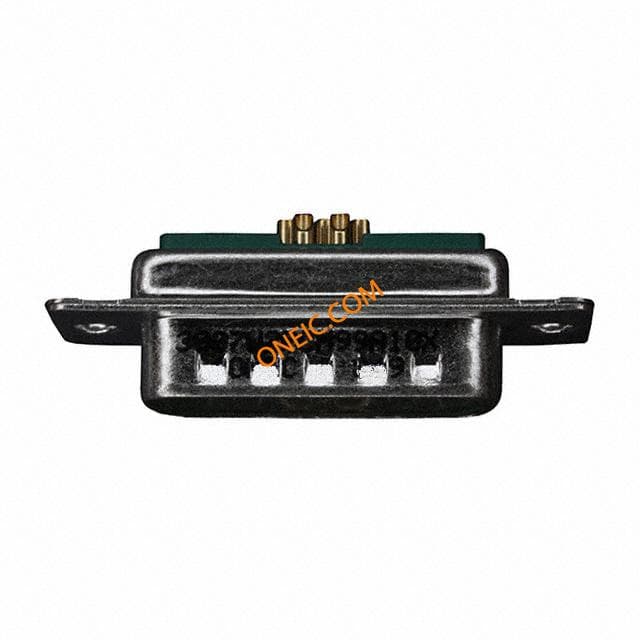

3007W2PCM99A10X

CONEC

D-Sub Mixed Contact Connectors 7W2 SOLDER CUP MALE Conn D-Subminiature M 5Signal/2Cavity POS Solder Cup ST Panel Mount 7 Terminal 1 Port CONN DSUB COMBO 7POS 7W2 PLUG

¥15.9800

详情

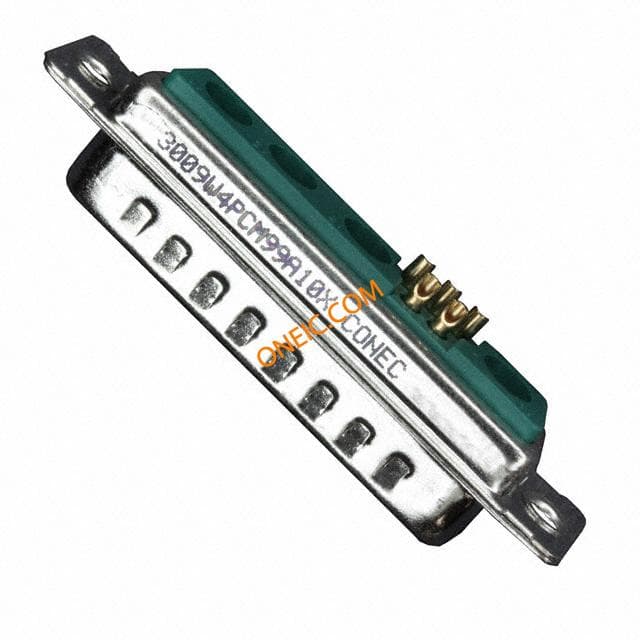

3009W4PCM99A10X

CONEC

D-Sub Mixed Contact Connectors 9W4 SOLDER CUP MALE Conn D-Subminiature M 5 POS Solder Cup ST Panel Mount 5 Terminal 1 Port CONN DSUB COMBO 9POS 9W4 PLUG Plug; Special D-Sub; PIN:9(4+5); male; w/o special terminals

¥14.0896

详情

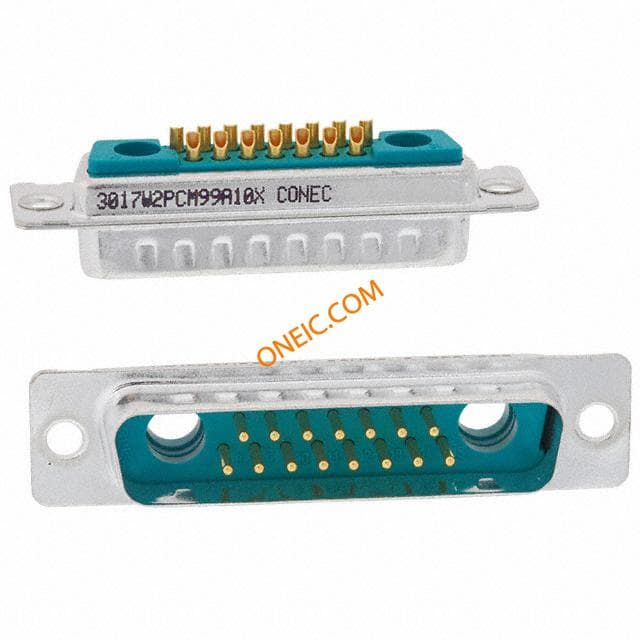

3017W2PCM99A10X

CONEC

D-Sub Mixed Contact Connectors 17W2 SOLDER CUP MALE CONN DSUB COMBO 17POS 17W2 PLUG Plug; Special D-Sub; PIN:17(2+15); male; w/o special terminals

¥114.2747

详情

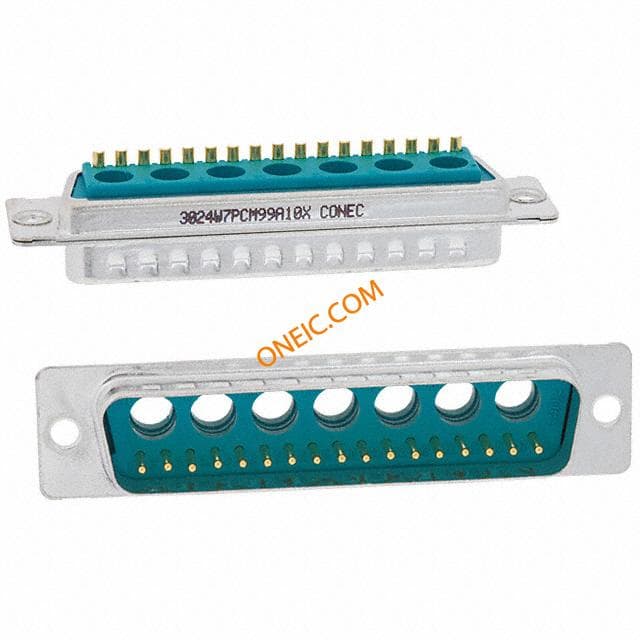

3024W7PCM99A10X

CONEC

D-Sub Mixed Contact Connectors 24W7 SOLDER CUP MALE Conn D-Subminiature M 17Signal/7Cavity POS Solder Cup ST Panel Mount 17 Terminal 1 Port CONN DSUB COMBO 24POS 24W7 PLUG

¥37.8080

详情

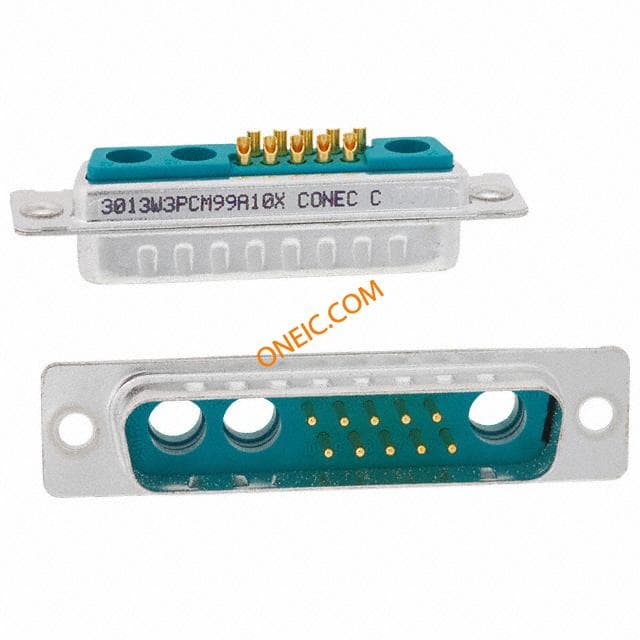

3013W3PCM99A10X

CONEC

D-Sub Mixed Contact Connectors 13W3 SOLDER CUP MALE CONN DSUB COMBO 13POS 13W3 PLUG

¥28.2880

详情

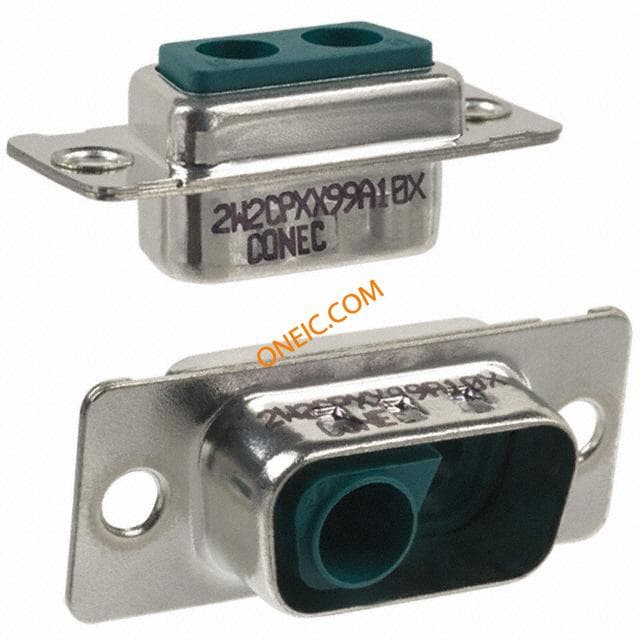

302W2CPXX99A10X

CONEC

D-Sub Mixed Contact Connectors 2W2C MALE Conn Housing M 2Power POS Crimp ST Panel Mount CONN DSUB COMBO 2POS 2W2C PLUG

¥9.5880

详情

3003W3PXX99A10X

CONEC

D-Sub Mixed Contact Connectors 3W3 MALE Conn Housing M 3Power POS Crimp ST Panel Mount CONN DSUB COMBO 3POS 3W3 PLUG Plug; Special D-Sub; PIN:3(3+0); male; w/o special terminals

¥15.5611

详情

3005W5PXX99A10X

CONEC

D-Sub Mixed Contact Connectors 5W5 MALE Conn Housing M 5Power POS Crimp ST Panel Mount CONN DSUB COMBO 5POS 5W5 PLUG Plug; Special D-Sub; PIN:5(5+0); male; w/o special terminals

¥15.4972

详情

3008W8PXX99A10X

CONEC

D-Sub Mixed Contact Connectors 8W8 MALE Conn Housing PL 8 POS Crimp ST Cable Mount CONN DSUB COMBO 8POS 8W8 PLUG

¥17.9044

详情

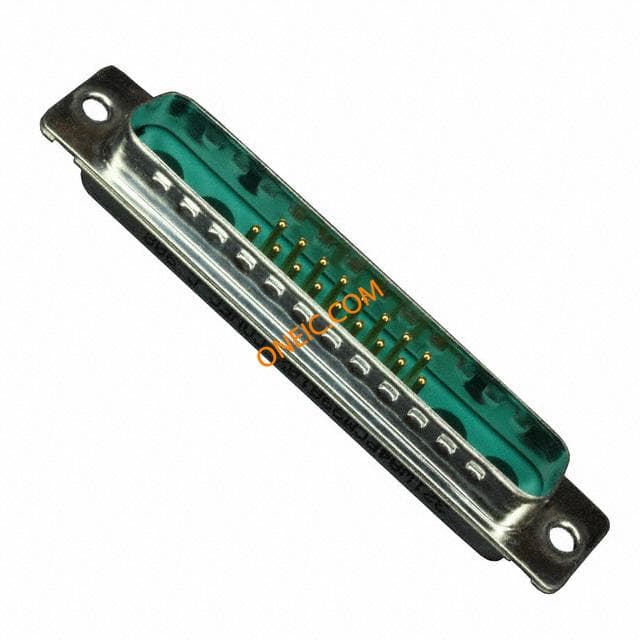

321WA4PCM99A10X
