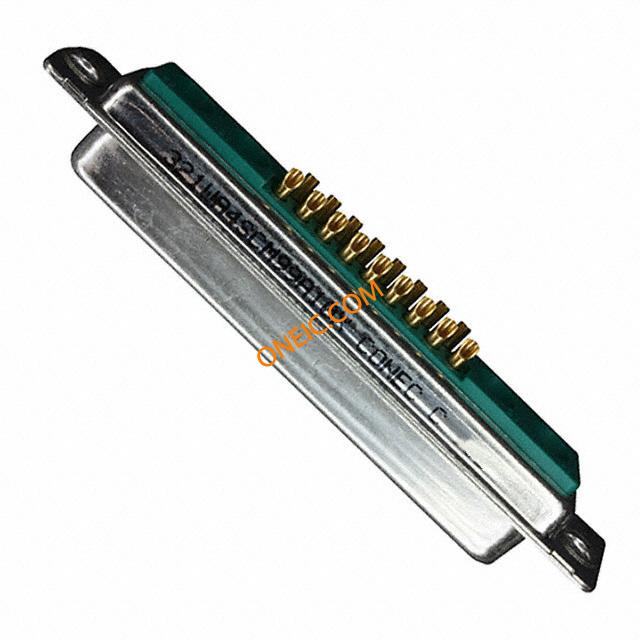

321WA4SCM99A10X
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 21WA4 SOLDER CUP FEMALE Conn D-Subminiature SKT 17 POS Solder Cup ST Panel Mount 17 Terminal 1 Port CONN DSUB COMBO 21POS 21WA4 SCKT |
| Category |
商业参数
| 其他名称 | 626-1133 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 30 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 250V | 最大额定电流 | 5A |
| 最小输入电压 | 125V | ||
机械参数
| 颜色 | Green | 深度 | 14.45 |
| 高度 | 12.93 | 包装方式 | Tray |
| 外壳尺寸 | 4 | 端接方式 | Solder Cup |
| 触点形式 | Coax or Power (Not Included) and Signal | 触头类型 | Coax or Power (Not Included) and Signal |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub, Combo | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 69.7 |
| 端接样式 | Solder | 第一触头极性 | SKT |
| 触点数 | 17 | 位数 | 21 (17 + 4 Coax or Power) |
| 外壳材料及表面处理 | Steel, Tin Plated | 典型触点布局 | 21WA4 |
| 接触镀层厚度 | 30µin (0.76µm) | 外壳尺寸，连接器布局 | 4 (DC, C) - 21WA4 |
产品信息
| 类型 | D-Subminiature | 连接器性别 | Female |
| 系列 | 300 | 端口数 | 1 |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
