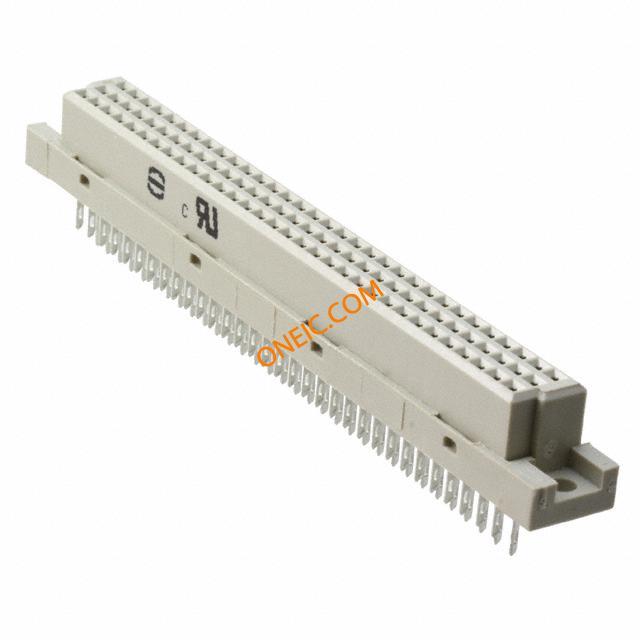

09032966823

Manufacturer	HARTING Technology Group
Description	Conn DIN 41612 F 96 POS 2.54mm Solder Lug ST Panel Mount DIN 41612 Connectors 96P TYPE C FEMALE CLOSED SLDR LUG DIN-SIGNAL C096FL-7,7C1-2 Connector DIN-Signal solder 96-way f ConnectorDIN-Signalsolder96-wayf Plug; DIN 41612,type C; female; PIN:96; a+b+c; soldering; straight Plug; DIN 41612; type C; female; PIN:96; a+b+c; soldering; straight Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

接触电阻	20mΩ	最大额定电流	2A
连接器类型 - 电压输入	type C

机械参数

深度	19.3	间距	0.100" (2.54mm)
高度	10.6	重量	0 mg
包装方式	Bulk	方向	straight
端接方式	Solder Lug	引脚间距	len. 5.2mm
安装类型	Straight	连接器类型	Receptacle, Female Sockets
接触镀层	Gold Over Nickel	排数	3
触头材料	Copper Alloy	壳体材料	Thermoplastic
总长度	95	包装数量	3
端接排数	a/b/c	连接器 - 电缆	plug
触点数	96	位数	96
绝缘材料 - 材质	Thermoplastic, Glass Filled	触点材料 - 镀层	gold plated
第一连接器安装特征	a+b+c

产品信息

SPG	3	类型	DIN 41612
样式	C	连接器性别	F
系列	09 03	等级代码	C2
CAD图纸	3D CAD Model	单元数量	1
插座类型与数量	A/b/c	加载位置数	All

环境参数

额定等级	C2	级别、等级	2
机械寿命	400cycles	工作温度	+125°C
