09036966921

Manufacturer
HARTING Technology Group
Description

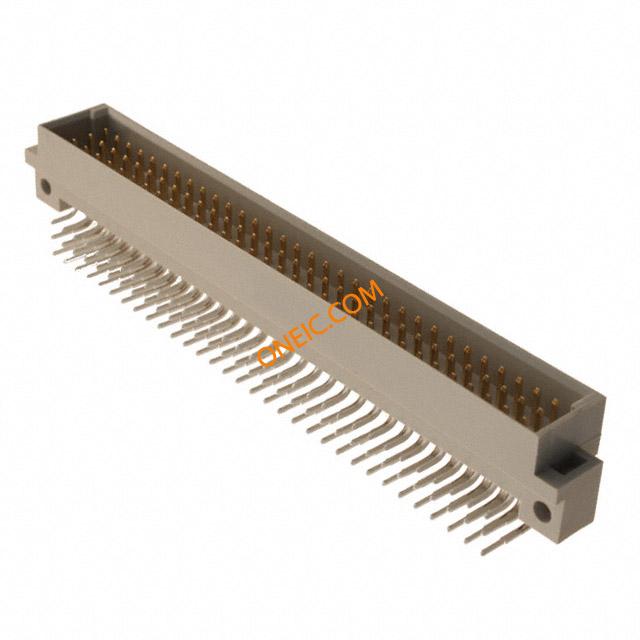

Conn Shrouded Header HDR 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 96P MALE RA TYPE C DIN-SIGNAL C096MS-3,0C1-2-COD
Category
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

零件号别名03 09 09-03-696-6921 6921 696产品类别DIN 41612 Connectors
标准包装数量1工厂包装数量20

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

最大额定电流2 A

机械参数

深度17.72间距0.100" (2.54mm)
高度13.1包装方式Bulk
端接方式Solder尾部长度3 mm
安装类型Through Hole连接器类型Header, Male Pins
接触镀层Gold排数3
触头材料Copper Alloy总长度94
端接样式Solder Pin触点数96
位数96绝缘材料 - 材质Thermoplastic, Glass Filled

产品信息

类型Shrouded Header样式C
连接器性别HDR产品子类型Plugs
加载位置数All

环境参数

级别、等级2
