点击放大查看

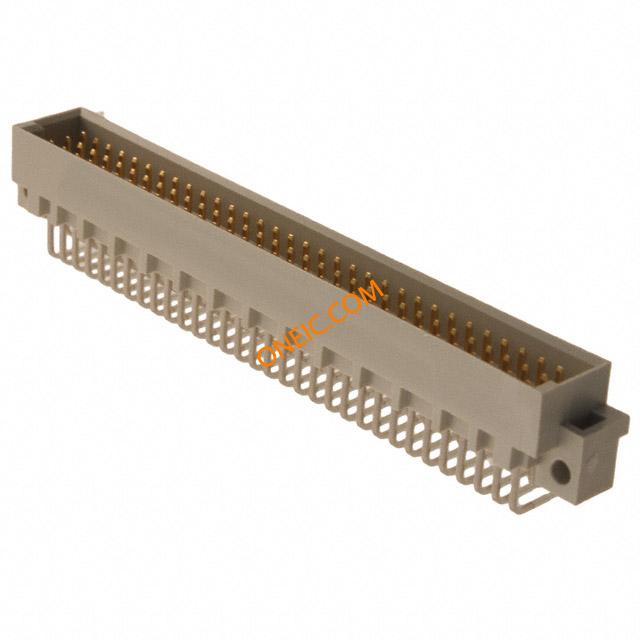

09031962921

Manufacturer	HARTING Technology Group
Description	Conn Shrouded Header M 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 96P TYPE C MALE STD 2.54MM PITCH DIN-SIGNAL C096MS-3,0C1-1 96 way 3 row DIN41612 plug,r/a terminals Connector,PrintedBoard;96;2A;2.54mm(Row);Male;AngledSolderPin Harting 96 路 2.54mm 节距, C型 C1等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	03 09 09-03-196-2921 196 2921	产品类别	DIN 41612 Connectors
标准包装数量	1	工厂包装数量	20

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
标准	IEC60603-2	材料阻燃等级	UL94 V-0

电气参数

最大额定电流

机械参数

深度	17.72	间距	0.100" (2.54mm)
高度	11	长度	3.0mm(Termination)
包装方式	Bulk	外壳尺寸	C
方向	直角	端接方式	Solder
引脚长度（针脚）	3mm	尾部长度	3 mm
安装类型	Right Angle	行程角度	Right
连接器类型	Header, Male Pins	接触镀层	Gold Over Nickel
引脚数	96	排数	3
触头材料	Copper Alloy	总长度	94mm
主要材料	Industrial	端接排数	焊接
插针孔直径	2.54mm	端接样式	Solder Pin
触点数	96	位数	96
绝缘材料 - 材质	Thermoplastic, Glass Filled	安装孔直径	2.8mm

产品信息

类型	Shrouded Header	样式	C
连接器性别	M	CAD图纸	3D CAD Model
产品子类型	Plugs	插座类型与数量	A/b/c
加载位置数	All

环境参数

额定等级	C1	距离	1.2mm
级别、等级	1
