Manufacturer
HARTING Technology Group
Description

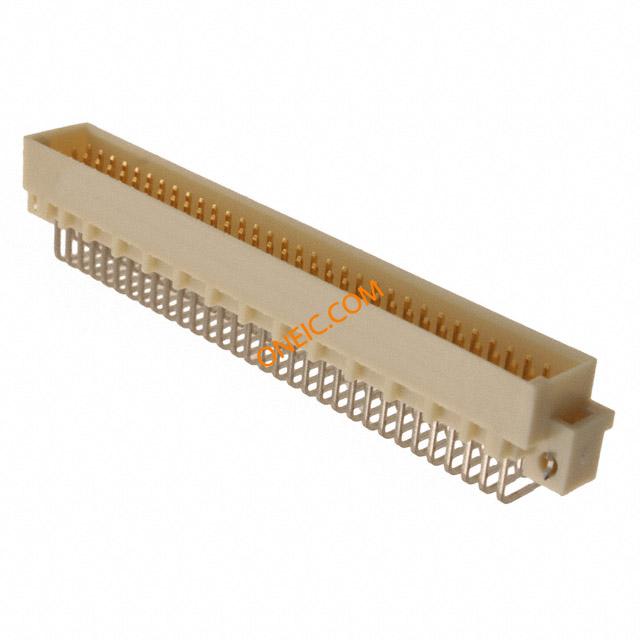

Conn Shrouded Header HDR 96 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors C096MR-3,0C1-2-CLIP DIN SIGNAL DIN-SIGNAL C096MR-3,0C1-2-CLIP 96 way type C DIN41612 male connector DINConnector;96;2A(Max.);2.54mm(Row);Male;SMC;3mm;RoHSCompliant Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接
Category
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

零件号别名03 09 09-03-396-6919 396 6919标准包装数量1
工厂包装数量20

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

最大额定电流2A

机械参数

深度17.72 mm间距0.100" (2.54mm)
高度11 mm包装方式Bulk
方向直角端接方式Solder
安装类型Right Angle连接器类型Header, Male Pins
接触镀层Gold Over Nickel安装样式Through Hole
排数3总长度94 mm
端接排数焊接端接样式Solder
触点数96位数96
绝缘材料 - 材质Thermoplastic, Glass Filled

产品信息

类型Shrouded Header样式C
连接器性别HDR系列DIN 41612
产品特性Mounting ClipsCAD图纸3D CAD Model
产品子类型Plugs插座类型与数量A/b/c
加载位置数All

环境参数

额定等级C2级别、等级2
