点击放大查看

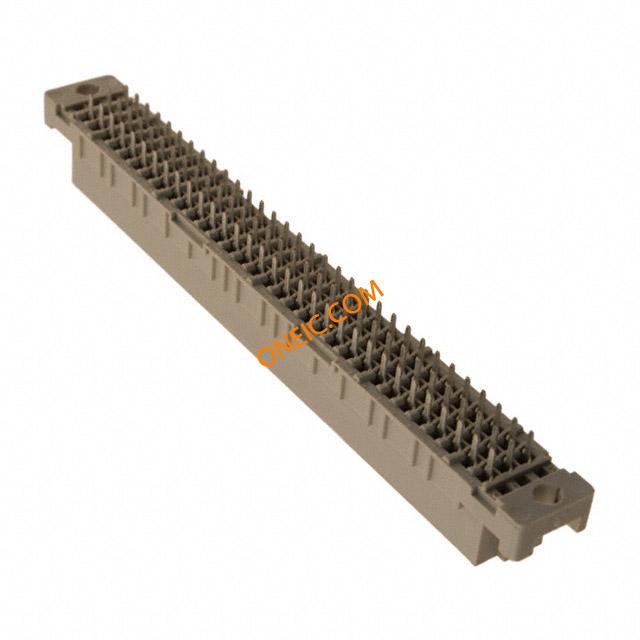

09032966824

Manufacturer	HARTING Technology Group
Description	Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 96P TYPE C FEMALE STD NO FIXING DIN-SIGNAL C096FS-2,9C1-2 Connector DIN-Signal solder 96-way f Connector; Din 41612; Female; 96 Contacts; Straight; Solder Pin Connector,Din41612,Female,96Contacts,Straight,SolderPin Harting 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	03 09 09-03-296-6824 296 6824	产品类别	DIN 41612 Connectors
标准包装数量	1	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
标准	IEC60603-2	材料阻燃等级	UL94 V-0

电气参数

最大额定电流

机械参数

深度	10.5 mm	间距	0.100" (2.54mm)
高度	11.6 mm	包装方式	Bulk
外壳尺寸	C	方向	直
端接方式	Solder	引脚长度（针脚）	2.9mm
尾部长度	5.2 mm, 7.7 mm	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle, Female Sockets
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	3	触头材料	Copper Alloy
总长度	94.9 mm	主要材料	Industrial
端接排数	焊接	插针孔直径	2.54mm
端接样式	Solder Lug	触点数	96
位数	96	绝缘材料 - 材质	Thermoplastic, Glass Filled
安装孔直径	2.8mm

产品信息

类型	DIN 41612	样式	C
连接器性别	F	系列	har-bus
产品特性	Backplane	产品子类型	Receptacles
插座类型与数量	A/b/c	加载位置数	All

环境参数

额定等级

级别、等级
