Part # Aliases	03 09 09-03-296-6845 296 6845	Standard Package	1
Factory Pack Quantity	100

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Material Flammability Rating	UL94 V-0

Depth	10.5	Pitch	0.100" (2.54mm)
Height	11.6	Packaging	Bulk
Orientation	直	Termination	Solder

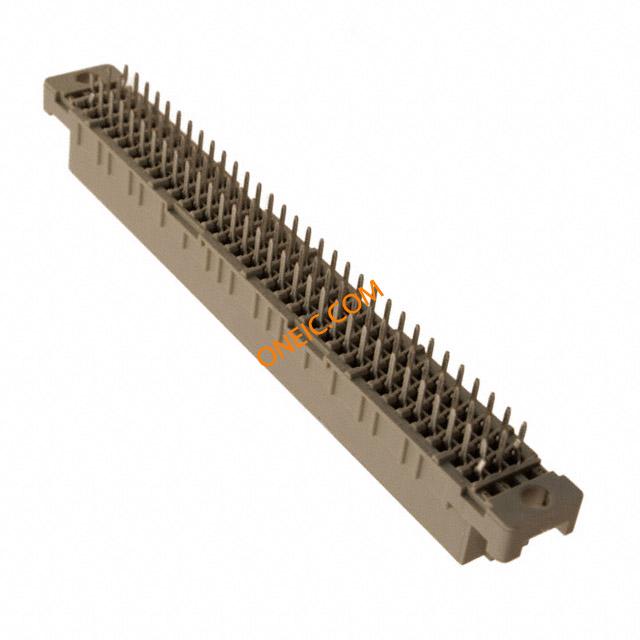

Mounting Type	Straight	Connector Type	Receptacle, Female Sockets
Contact Finish	Gold Over Nickel	Number of Rows	3
Contact Material	Copper Alloy	Housing Material	Polybutylene Terephthalate (PBT)
Length - Overall	94.9	Termination Rows	焊接
Termination Style	Solder	Number of Contacts	96
Number of Positions	96	Material - Insulation	Thermoplastic, Glass Filled

Ratings	C2	Level, Class	2
Operating Temperature	- 55 C to + 125 C

09032966845
